NTBGS6D5N15MC دیتاشیت

مشخصات دیتاشیت

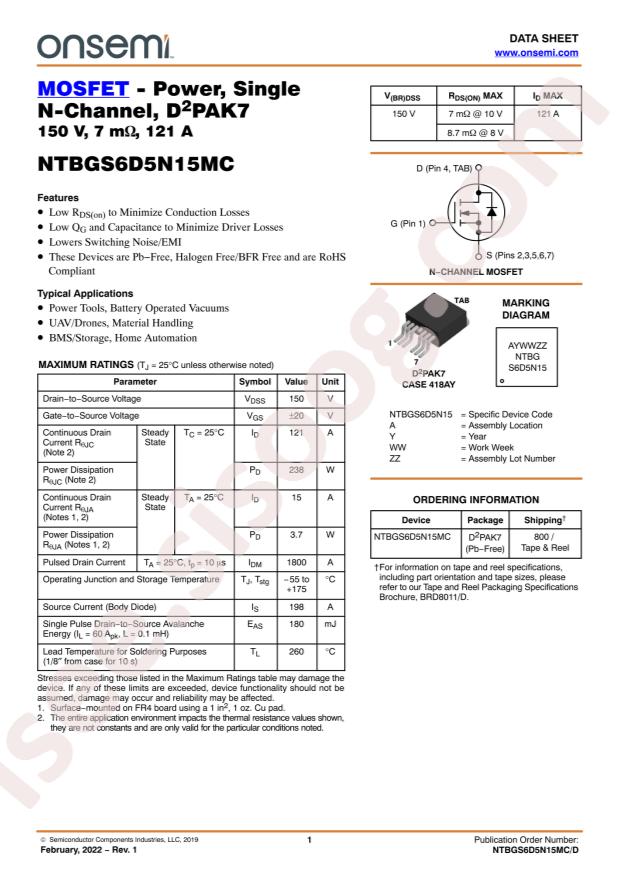

مشاهده دیتاشیت NTBGS6D5N15MC	دانلود دیتاشیت

RoHS: true
Type: N Channel
Category: Triode/MOS Tube/Transistor/MOSFETs
Datasheet: onsemi NTBGS6D5N15MC
Operating Temperature: -55°C~+175°C@(Tj)
Power Dissipation (Pd): 3.7W;238W
Total Gate Charge (Qg@Vgs): 57nC@10V
Drain Source Voltage (Vdss): 150V
Input Capacitance (Ciss@Vds): 4.745nF@75V
Continuous Drain Current (Id): 15A;121A
Gate Threshold Voltage (Vgs(th)@Id): 3.5V@379uA
Reverse Transfer Capacitance (Crss@Vds): 10.3pF@75V
Drain Source On Resistance (RDS(on)@Vgs,Id): 5.5mΩ@10V,69A
Package: TO-263-7
Manufacturer: onsemi
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss): 150V
Current - Continuous Drain (Id) @ 25°C: 15A (Ta), 121A (Tc)
Drive Voltage (Max Rds On, Min Rds On): 8V, 10V
Rds On (Max) @ Id, Vgs: 7mOhm @ 69A, 10V
Vgs(th) (Max) @ Id: 4.5V @ 379µA
Gate Charge (Qg) (Max) @ Vgs: 57nC @ 10V
Vgs (Max): ±20V
Input Capacitance (Ciss) (Max) @ Vds: 4745pF @ 75V
FET Feature: -
Power Dissipation (Max): 3.7W (Ta), 238W (Tc)
Mounting Type: Surface Mount
Supplier Device Package: D²PAK (TO-263)
Package / Case: TO-263-7, D²Pak (6 Leads + Tab)
detail: N-Channel 150V 15A (Ta), 121A (Tc) 3.7W (Ta), 238W (Tc) Surface Mount D²PAK (TO-263)
