MC74HC1G00 دیتاشیت

MC74HC1G00

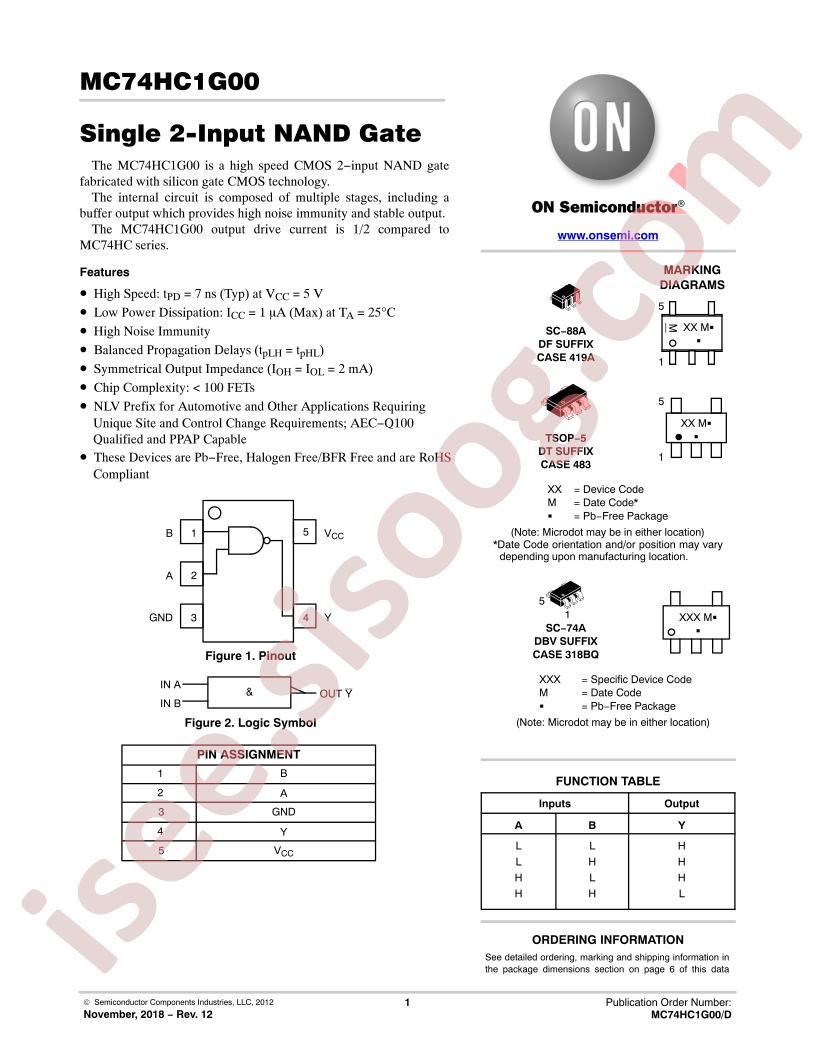

مشخصات دیتاشیت

نام دیتاشیت MC74HC1G00
حجم فایل 170.462 کیلوبایت
نوع فایل pdf
تعداد صفحات 9

دانلود دیتاشیت MC74HC1G00

دانلود دیتاشیت

سایر مستندات

MC74HC1G00DFT2G 10 pages

مشخصات فنی

  • RoHS: true
  • Series: 74HC
  • Category: Logic ICs/Gates
  • Datasheet: onsemi MC74HC1G00DBVT1G
  • Sink Current: 2.6mA
  • Source Current: 2.6mA
  • Supply Voltage: 2V~6V
  • Logic Gate Type: NAND Gates
  • Number of Channels: 1
  • Operating Temperature: -55°C~+125°C
  • Package: SC-74A-5
  • Manufacturer: onsemi
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Logic Type: NAND Gate
  • Number of Circuits: 1
  • Number of Inputs: 2
  • Features: -
  • Voltage - Supply: 2V ~ 6V
  • Current - Quiescent (Max): 1µA
  • Current - Output High, Low: 2.6mA, 2.6mA
  • Logic Level - Low: 0.5V ~ 1.8V
  • Logic Level - High: 1.5V ~ 4.2V
  • Max Propagation Delay @ V, Max CL: 17ns @ 6V, 50pF
  • Mounting Type: Surface Mount
  • Supplier Device Package: SC-74A
  • Package / Case: SC-74A, SOT-753
  • Base Part Number: MC74HC1G00

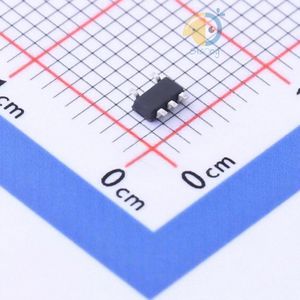

  • detail: NAND Gate IC 1 Channel SC-74A
