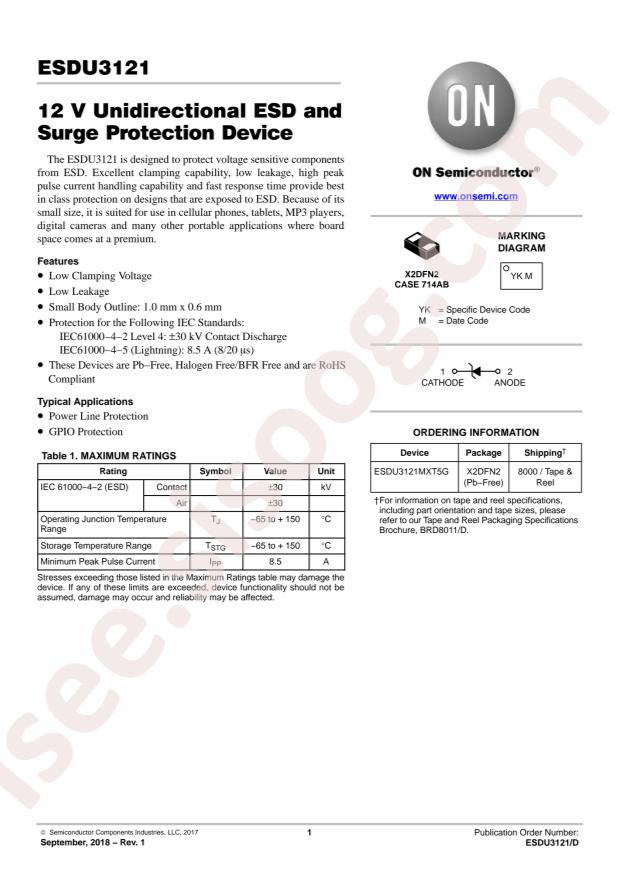

ESDU3121MXT5G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
ESDU3121MXT5G
|
|
حجم فایل
|
71.814
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/ESD Protection Devices
-
Datasheet:
onsemi ESDU3121MXT5G
-
Number of Lines:
1
-
Clamping Voltage@Ipp:
22V
-
Breakdown Voltage (VBR):
14.1V
-
Package:
X2-DFN-2
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Type:
Zener
-
Unidirectional Channels:
1
-
Voltage - Reverse Standoff (Typ):
12V (Max)
-
Voltage - Breakdown (Min):
14.1V
-
Voltage - Clamping (Max) @ Ipp:
22V
-
Current - Peak Pulse (10/1000µs):
8.5A (8/20µs)
-
Power - Peak Pulse:
-
-
Power Line Protection:
No
-
Applications:
General Purpose
-
Capacitance @ Frequency:
55pF @ 1MHz
-
Operating Temperature:
-65°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
2-XDFN
-
Supplier Device Package:
2-X2DFN (1x0.6)
-
Base Part Number:
ESDU31
-
detail:
22V Clamp 8.5A (8/20µs) Ipp Tvs Diode Surface Mount 2-X2DFN (1x0.6)
