دیتاشیت SMSD1819A-RT1G

MSD/SMSD1819A-RT1G

مشخصات دیتاشیت

نام دیتاشیت MSD/SMSD1819A-RT1G
حجم فایل 58.575 کیلوبایت
نوع فایل pdf
تعداد صفحات 4

دانلود دیتاشیت MSD/SMSD1819A-RT1G

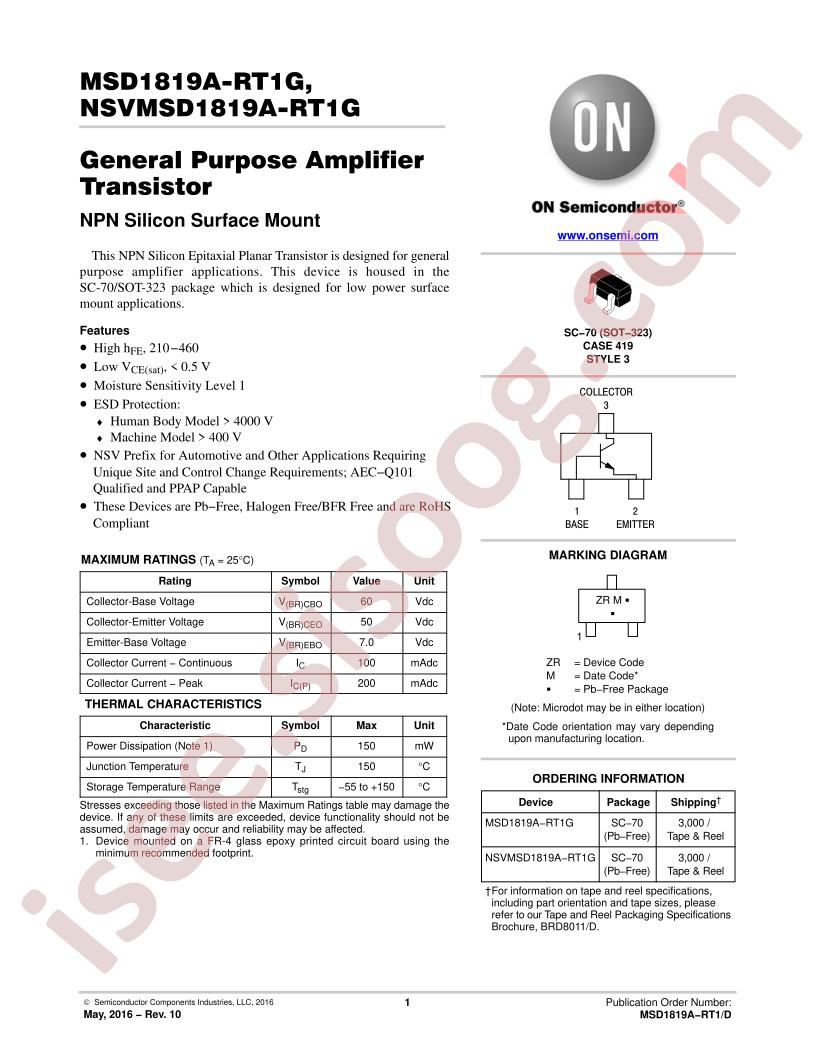

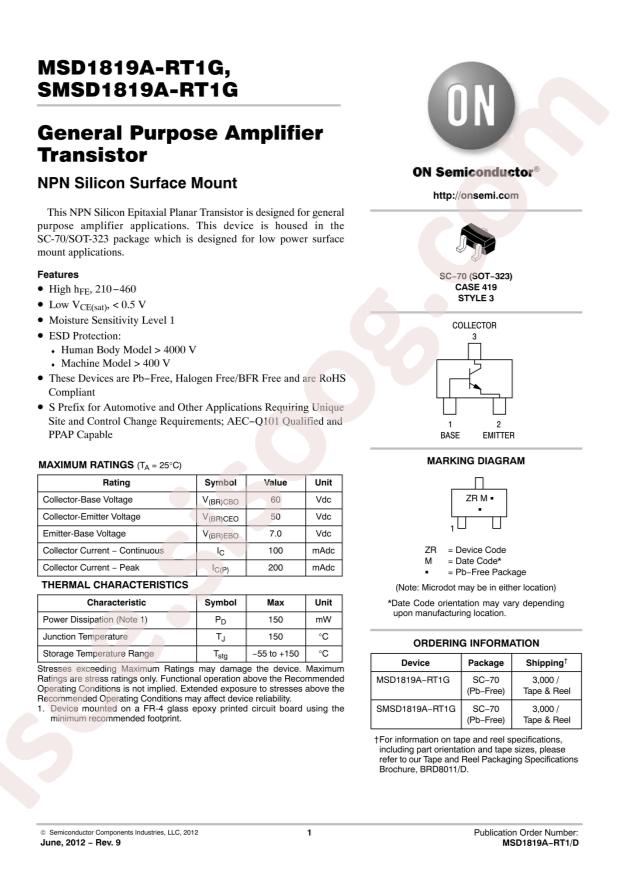

MSD/SMSD1819A-RT1G Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: onsemi SMSD1819A-RT1G
  • Transistor Type: NPN
  • Collector Current (Ic): 100mA
  • Power Dissipation (Pd): 150mW
  • DC Current Gain (hFE@Ic,Vce): 210@2mA,10V
  • Collector Cut-Off Current (Icbo): 100nA
  • Collector-Emitter Breakdown Voltage (Vceo): 50V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 500mV@10mA,100mA
  • Package: SC-70-3
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Current - Collector (Ic) (Max): 100mA
  • Voltage - Collector Emitter Breakdown (Max): 50V
  • Vce Saturation (Max) @ Ib, Ic: 500mV @ 10mA, 100mA
  • Current - Collector Cutoff (Max): 100nA
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 210 @ 2mA, 10V
  • Power - Max: 150mW
  • Frequency - Transition: -
  • Operating Temperature: 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: SC-70, SOT-323
  • Supplier Device Package: SC-70-3 (SOT323)
  • Base Part Number: SMSD1
  • detail: Bipolar (BJT) Transistor NPN 50V 100mA 150mW Surface Mount SC-70-3 (SOT323)
