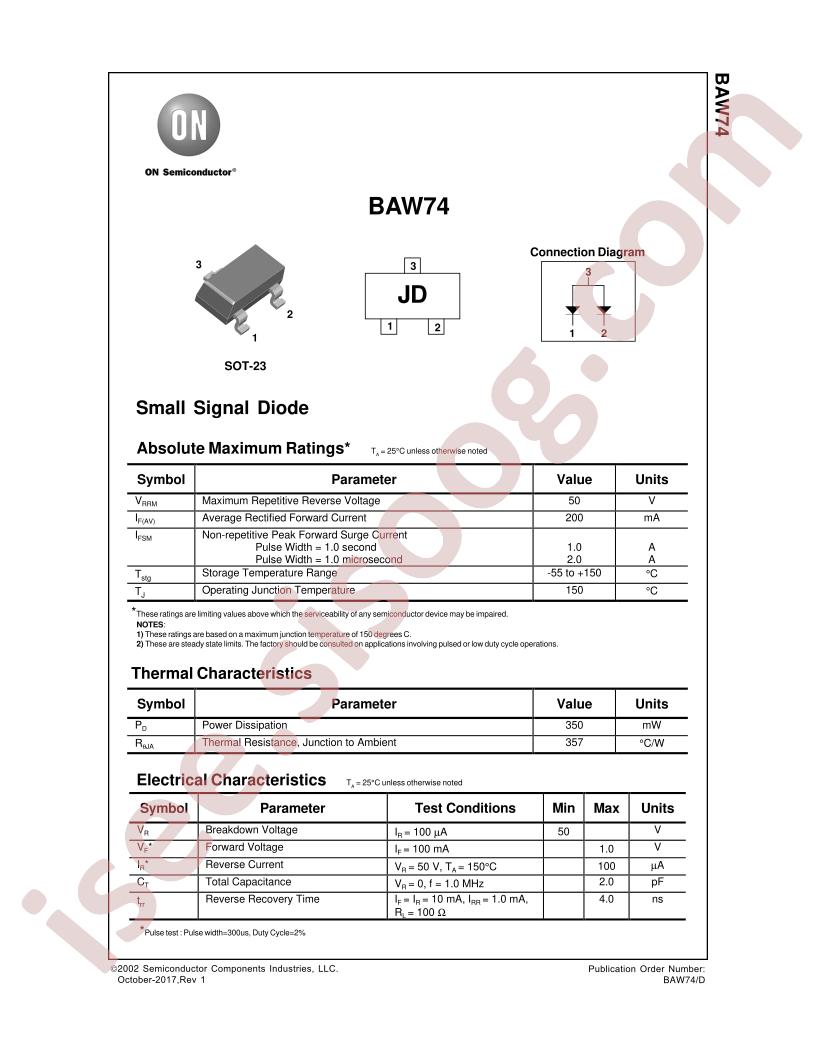

BAW74-D87Z Datasheet
Datasheet specifications
| Datasheet's name | BAW74 |
|---|---|
| File size | 119.703 KB |
| File type | |
| Number of pages | 2 |
Download Datasheet BAW74 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: ON Semiconductor
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Discontinued at Digi-Key
- Diode Configuration: 1 Pair Common Anode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 50V
- Current - Average Rectified (Io) (per Diode): 200mA
- Voltage - Forward (Vf) (Max) @ If: 1V @ 100mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 4ns
- Current - Reverse Leakage @ Vr: 100µA @ 50V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3 (TO-236)
- Base Part Number: BAW74
- detail: Diode Array 1 Pair Common Anode Standard 50V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3
