NL27WZU04DBVT1G دیتاشیت

NL27WZU04DBVT1G

مشخصات دیتاشیت

نام دیتاشیت NL27WZU04DBVT1G
حجم فایل 58.369 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

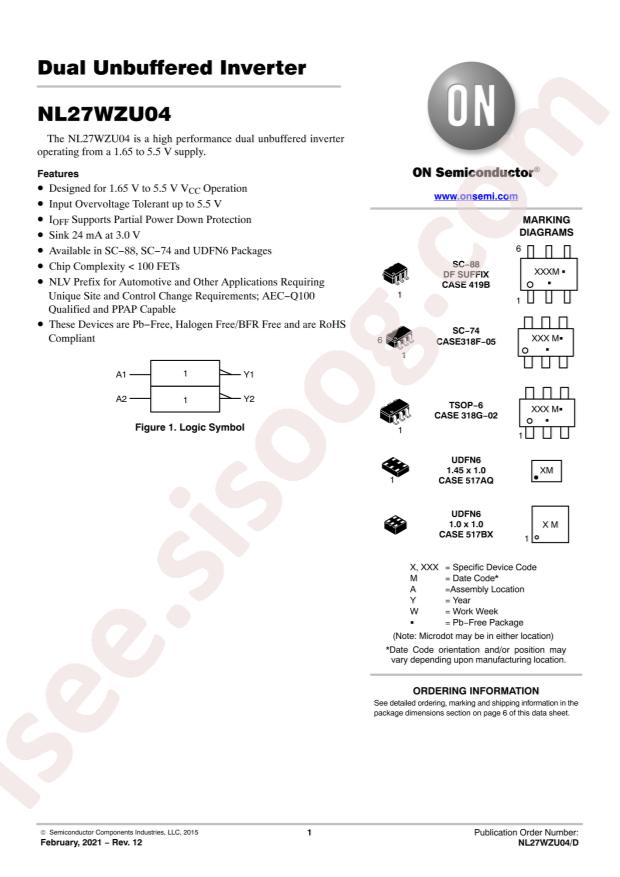

مشاهده دیتاشیت NL27WZU04DBVT1G

دانلود دیتاشیت

سایر مستندات

NL27WZU04 11 pages

مشخصات فنی

  • RoHS: true
  • Series: 27WZ
  • Category: Logic ICs/Inverters
  • Datasheet: onsemi NL27WZU04DBVT1G
  • Input Type: -
  • Sink Current: 16mA
  • Source Current: 16mA
  • Number of channels: 2
  • Supply Current (Max): 1uA
  • Low level range (VIL): -
  • Max Propagation Delay: 5.6ns@5V,50pF
  • Operating Temperature: 55°C~+125°C
  • High level range (VIH): -
  • Supply Voltage(Single): 1.65V~5.5V
  • Package: SC-74-6
  • Manufacturer: onsemi
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Logic Type: Inverter
  • Number of Circuits: 2
  • Number of Inputs: 2
  • Features: -
  • Voltage - Supply: 1.65V ~ 5.5V
  • Current - Quiescent (Max): 1µA
  • Current - Output High, Low: 16mA, 16mA
  • Logic Level - Low: -
  • Logic Level - High: -
  • Max Propagation Delay @ V, Max CL: 5.6ns @ 5V, 50pF
  • Mounting Type: Surface Mount
  • Supplier Device Package: SC-74
  • Package / Case: SC-74, SOT-457
  • Base Part Number: NL27W
  • detail: Inverter IC 2 Channel SC-74
