MC74VHC1G08EDFT2G دیتاشیت

MC74VHC1G08EDFT2G

مشخصات دیتاشیت

نام دیتاشیت MC74VHC1G08EDFT2G
حجم فایل 75.742 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

دانلود دیتاشیت MC74VHC1G08EDFT2G

دانلود دیتاشیت

سایر مستندات

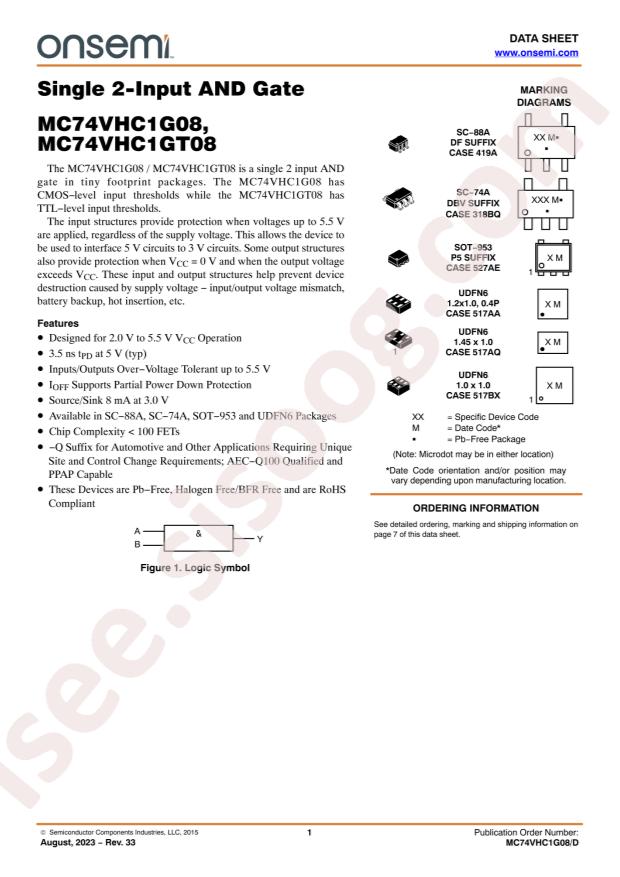

MC74VHC1G08, MC74VHC1GT08 14 pages

مشخصات فنی

  • RoHS: true
  • Series: 74VHC
  • Category: Logic ICs/Gates
  • Datasheet: onsemi MC74VHC1G08EDFT2G
  • Sink Current: 8mA
  • Source Current: 8mA
  • Supply Voltage: 2V~5.5V
  • Logic Gate Type: And
  • Number of Channels: 1
  • Low Level Range (VIL): 0.5V~1.65V
  • Operating Temperature: -55°C~+125°C
  • High Level Range (VIH): 1.5V~3.85V
  • Propagation Delay Time: 7.9ns@5V,50pF
  • Quiescent Current (Max): 1uA
  • Package: SOT-323-5
  • Manufacturer: onsemi
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Logic Type: AND Gate
  • Number of Circuits: 1
  • Number of Inputs: 2
  • Features: -
  • Voltage - Supply: 2V ~ 5.5V
  • Current - Quiescent (Max): 1µA
  • Current - Output High, Low: 8mA, 8mA
  • Logic Level - Low: 0.5V ~ 1.65V
  • Logic Level - High: 1.5V ~ 3.85V
  • Max Propagation Delay @ V, Max CL: 7.9ns @ 5V, 50pF
  • Mounting Type: Surface Mount
  • Supplier Device Package: SC-88A (SC-70-5/SOT-353)
  • Package / Case: 5-TSSOP, SC-70-5, SOT-353
  • Base Part Number: MC74VHC1G08
  • detail: AND Gate IC 1 Channel SC-88A (SC-70-5/SOT-353)
