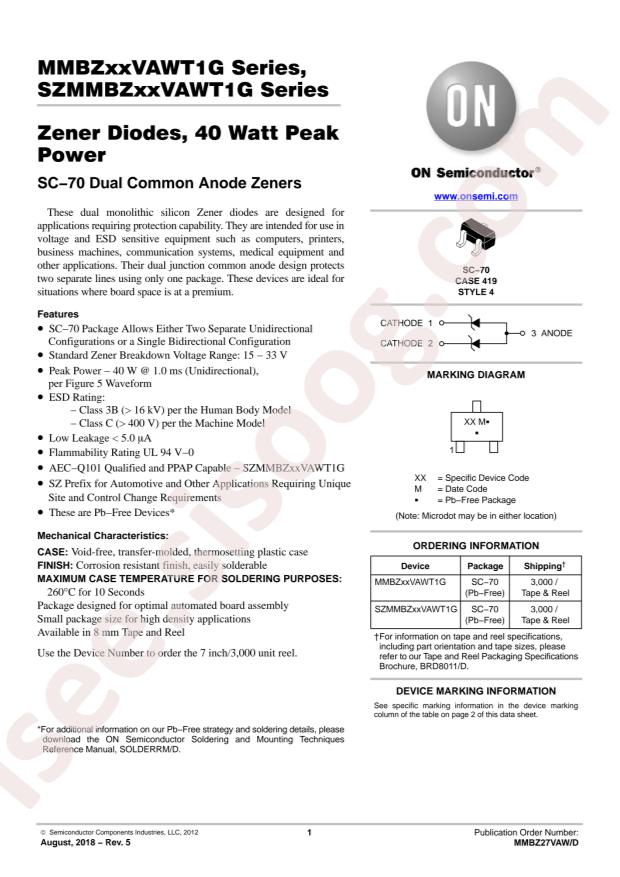

MMBZ20VAWT1G دیتاشیت

MMBZ20VAWT1G

مشخصات دیتاشیت

نام دیتاشیت MMBZ20VAWT1G
حجم فایل 88.539 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

دانلود دیتاشیت MMBZ20VAWT1G

دانلود دیتاشیت

سایر مستندات

MMBZxxVAWT1G, SZMMBZxxVAWT1G Series 5 pages

مشخصات فنی

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: onsemi MMBZ20VAWT1G
  • Number of Lines: 2
  • Clamping Voltage@Ipp: 28V
  • Breakdown Voltage (VBR): 19V
  • Reverse Stand-Off Voltage (Vrwm): 17V
  • Package: SC-70
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Type: Zener
  • Unidirectional Channels: 2
  • Bidirectional Channels: 1
  • Voltage - Reverse Standoff (Typ): 17V
  • Voltage - Breakdown (Min): 19V
  • Voltage - Clamping (Max) @ Ipp: 28V
  • Current - Peak Pulse (10/1000µs): 1.4A
  • Power - Peak Pulse: 40W
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: -
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: SC-70, SOT-323
  • Supplier Device Package: SC-70-3 (SOT323)
  • Base Part Number: MMBZ20
  • detail: 28V Clamp 1.4A Ipp Tvs Diode Surface Mount SC-70-3 (SOT323)
