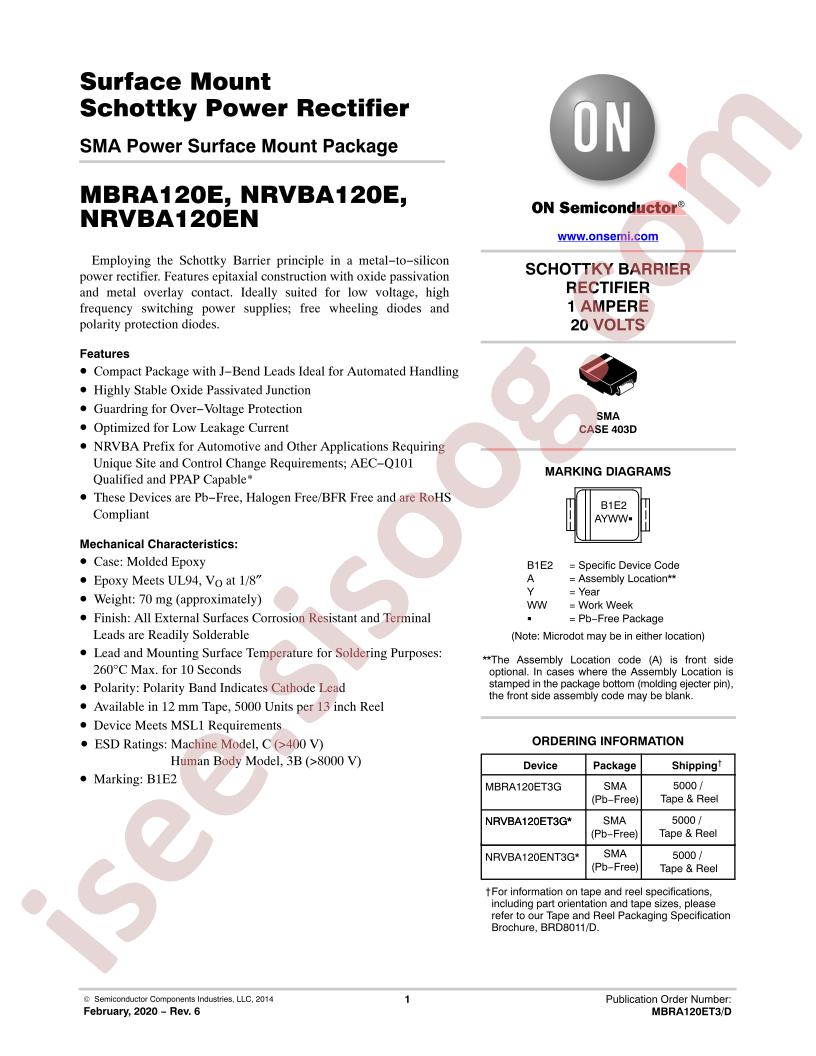

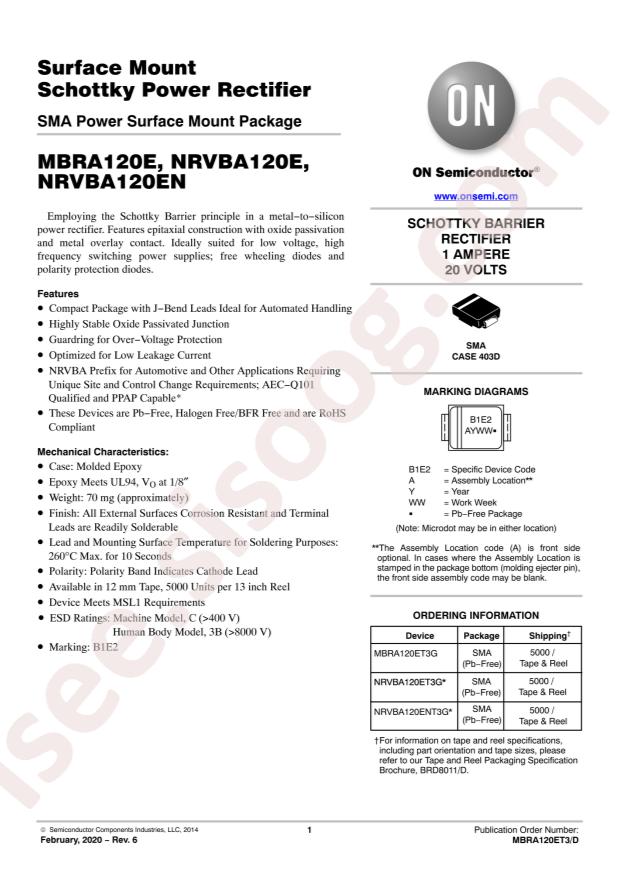

دیتاشیت NRVBA120ET3G
مشخصات دیتاشیت
نام دیتاشیت |
MBRA120ET3
|
حجم فایل |
249.85
کیلوبایت
|
نوع فایل |
pdf
|
تعداد صفحات |
6
|
مشخصات
-
RoHS:
true
-
Category:
Diodes/Schottky Barrier Diodes (SBD)
-
Datasheet:
onsemi NRVBA120ET3G
-
Diode Configuration:
-
-
Reverse Voltage (Vr):
20V
-
Forward Voltage (Vf@If):
595mV@2A
-
Reverse Leakage Current (Ir):
10uA@20V
-
Average Rectified Current (Io):
1A
-
Package:
SMA
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
20V
-
Current - Average Rectified (Io):
1A
-
Voltage - Forward (Vf) (Max) @ If:
595mV @ 2A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
500nA @ 5V
-
Capacitance @ Vr, F:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
DO-214AC, SMA
-
Supplier Device Package:
SMA
-
Operating Temperature - Junction:
-55°C ~ 150°C
-
Base Part Number:
NRVBA12
-
detail:
Diode Schottky 20V 1A Surface Mount SMA
