NSPM3031MXT5G دیتاشیت

NSPM3031MXT5G

مشخصات دیتاشیت

نام دیتاشیت NSPM3031MXT5G
حجم فایل 69.93 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

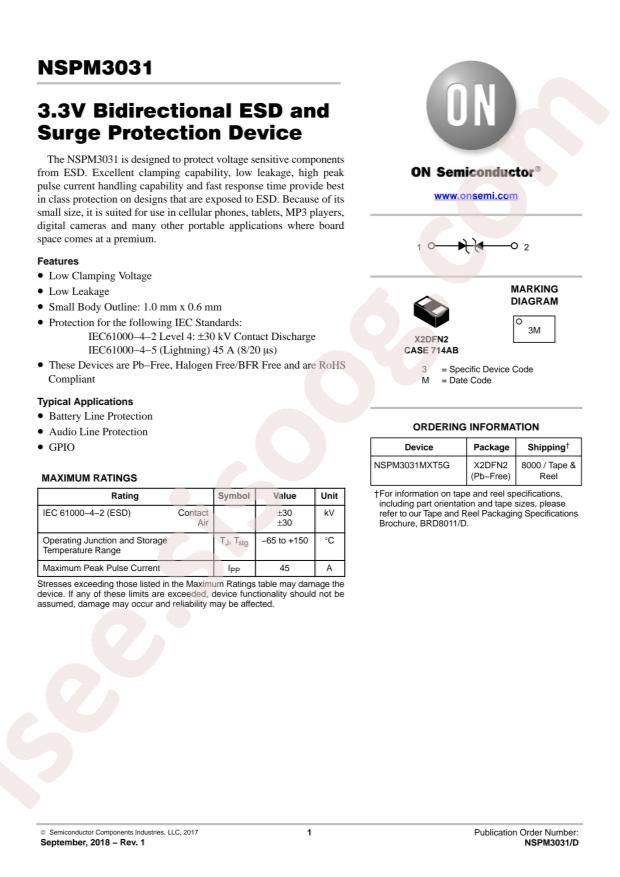

دانلود دیتاشیت NSPM3031MXT5G

دانلود دیتاشیت

سایر مستندات

NSPM3031 7 pages

مشخصات فنی

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/TVS
  • Datasheet: onsemi NSPM3031MXT5G
  • Breakdown Voltage: 4V
  • Maximum Clamping Voltage: 7.6V
  • Reverse Stand-Off Voltage (Vrwm): 3.3V@Max
  • Peak Pulse Current (Ipp)@10/1000us: -
  • Peak Pulse Power Dissipation (Ppp)@10/1000us: -
  • Package: X-DFN-2
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Type: Zener
  • Bidirectional Channels: 1
  • Voltage - Reverse Standoff (Typ): 3.3V (Max)
  • Voltage - Breakdown (Min): 4V
  • Voltage - Clamping (Max) @ Ipp: 7.6V
  • Current - Peak Pulse (10/1000µs): 45A (8/20µs)
  • Power - Peak Pulse: -
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: 87pF @ 1MHz
  • Operating Temperature: -65°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: 2-XDFN
  • Supplier Device Package: 2-X2DFN (1x0.6)
  • Base Part Number: NSPM30
  • detail: 7.6V Clamp 45A (8/20µs) Ipp Tvs Diode Surface Mount 2-X2DFN (1x0.6)
