ESD5B5.0ST5G دیتاشیت

ESD5B5.0ST5G

مشخصات دیتاشیت

نام دیتاشیت ESD5B5.0ST5G
حجم فایل 100.483 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

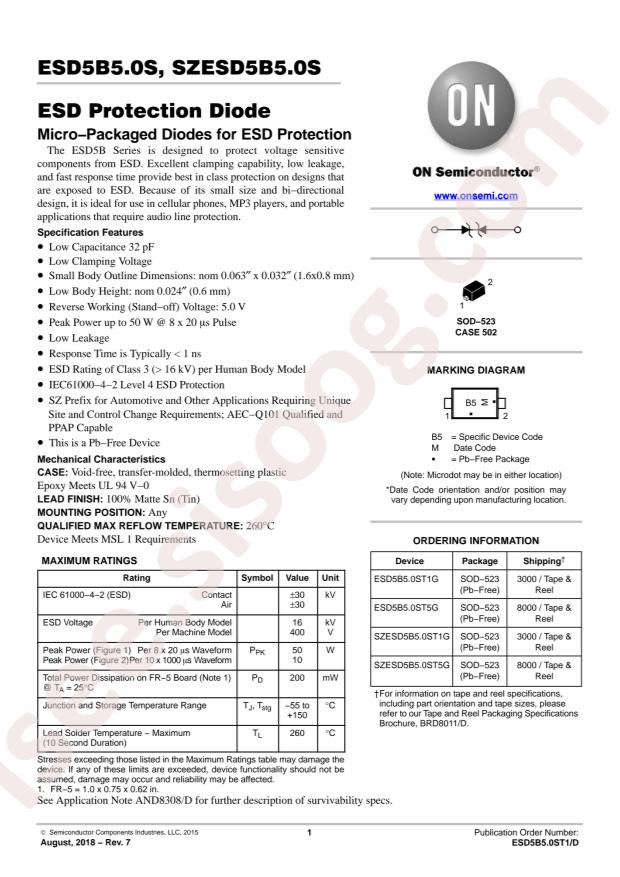

مشاهده دیتاشیت ESD5B5.0ST5G

دانلود دیتاشیت

سایر مستندات

ESD5B5.0ST1G 4 pages

مشخصات فنی

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/TVS
  • Datasheet: onsemi ESD5B5.0ST5G
  • Breakdown Voltage: 5.8V
  • Bidirectional Channels: 1
  • Maximum Clamping Voltage: -
  • Reverse Stand-Off Voltage (Vrwm): 5V@Max
  • Peak Pulse Current (Ipp)@10/1000us: -
  • Peak Pulse Power Dissipation (Ppp)@10/1000us: 50W
  • Package: SOD-523-2
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Type: Zener
  • Voltage - Reverse Standoff (Typ): 5V (Max)
  • Voltage - Breakdown (Min): 5.8V
  • Voltage - Clamping (Max) @ Ipp: -
  • Current - Peak Pulse (10/1000µs): -
  • Power - Peak Pulse: 50W
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: 32pF @ 1MHz
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: SC-79, SOD-523
  • Supplier Device Package: SOD-523
  • Base Part Number: ESD5
  • detail: Clamp Ipp Tvs Diode Surface Mount SOD-523
