NSVDTC123JM3T5G دیتاشیت

NSVDTC123JM3T5G

مشخصات دیتاشیت

نام دیتاشیت NSVDTC123JM3T5G
حجم فایل 90.323 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

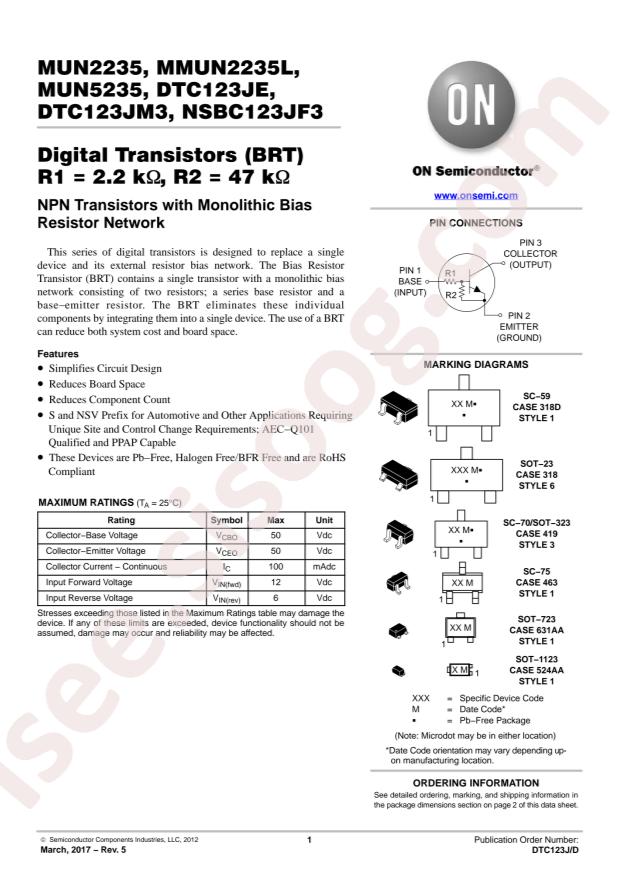

دانلود دیتاشیت NSVDTC123JM3T5G

دانلود دیتاشیت

سایر مستندات

MUN2235, MUN5235, DTC123Jxx, NSBC123JF3 12 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: onsemi NSVDTC123JM3T5G
  • Package: SOT-723
  • Manufacturer: onsemi
  • Series: Automotive, AEC-Q101
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Transistor Type: NPN - Pre-Biased
  • Current - Collector (Ic) (Max): 100mA
  • Voltage - Collector Emitter Breakdown (Max): 50V
  • Resistor - Base (R1): 2.2 kOhms
  • Resistor - Emitter Base (R2): 47 kOhms
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
  • Vce Saturation (Max) @ Ib, Ic: 250mV @ 1mA, 10mA
  • Current - Collector Cutoff (Max): 500nA
  • Power - Max: 260mW
  • Mounting Type: Surface Mount
  • Package / Case: SOT-723
  • Supplier Device Package: SOT-723
  • Base Part Number: NSVDTC123
  • detail: Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50V 100mA 260mW Surface Mount SOT-723
