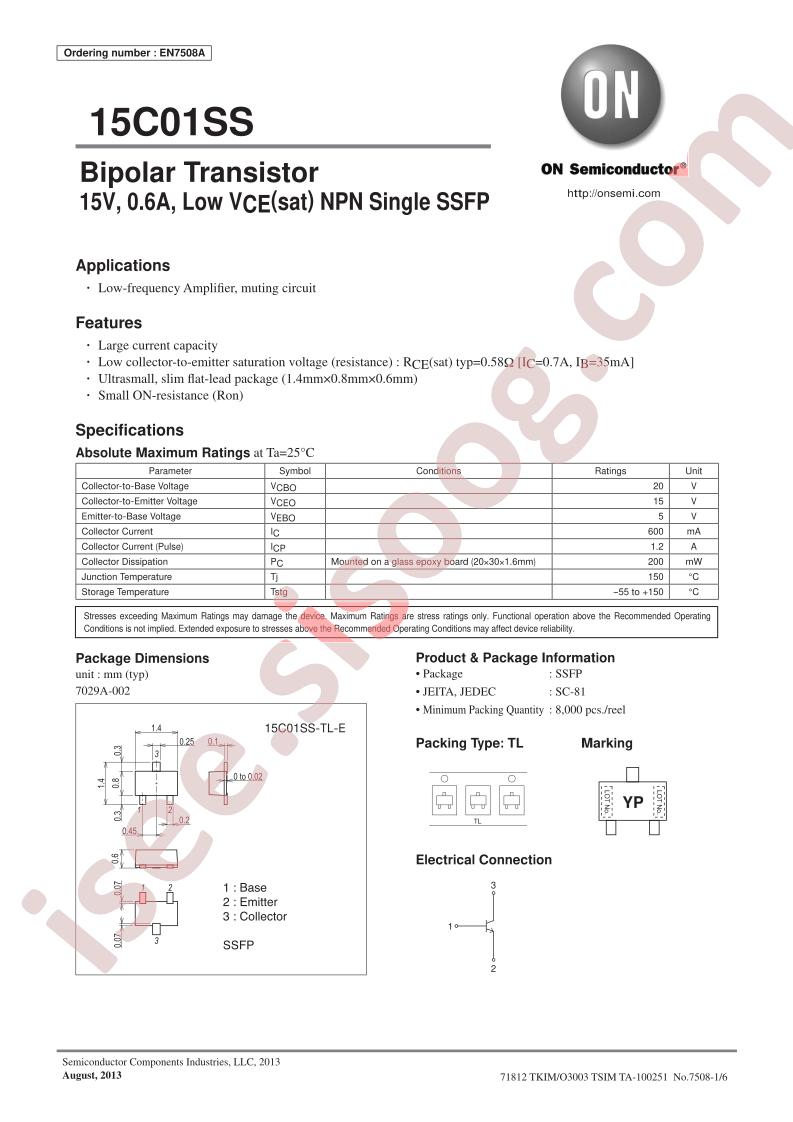

دیتاشیت 15C01SS-TL-E
مشخصات دیتاشیت
| نام دیتاشیت |
15C01SS
|
| حجم فایل |
513.49
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Transistor Type:
NPN
-
Current - Collector (Ic) (Max):
600mA
-
Voltage - Collector Emitter Breakdown (Max):
15V
-
Vce Saturation (Max) @ Ib, Ic:
300mV @ 10mA, 200mA
-
Current - Collector Cutoff (Max):
100nA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
300 @ 10mA, 2V
-
Power - Max:
200mW
-
Frequency - Transition:
330MHz
-
Operating Temperature:
150°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
3-SMD, Flat Lead
-
Supplier Device Package:
3-SSFP
-
Base Part Number:
15C01
-
detail:
Bipolar (BJT) Transistor NPN 15V 600mA 330MHz 200mW Surface Mount 3-SSFP
