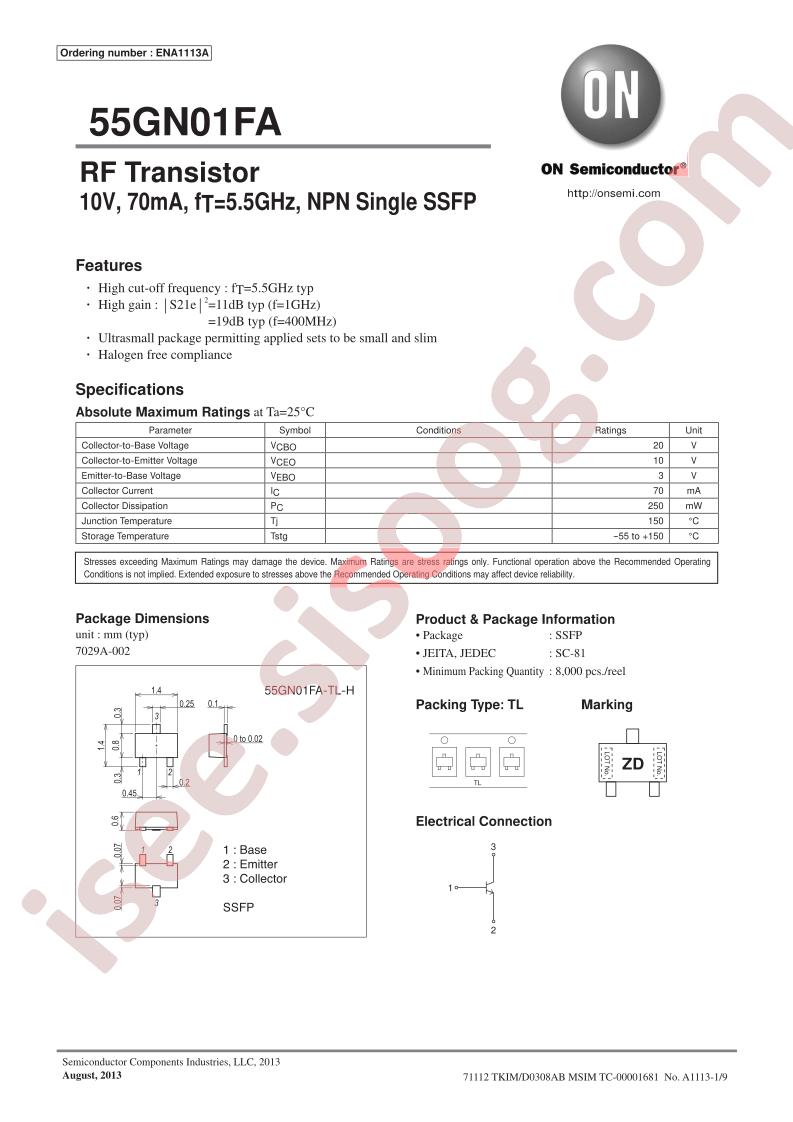

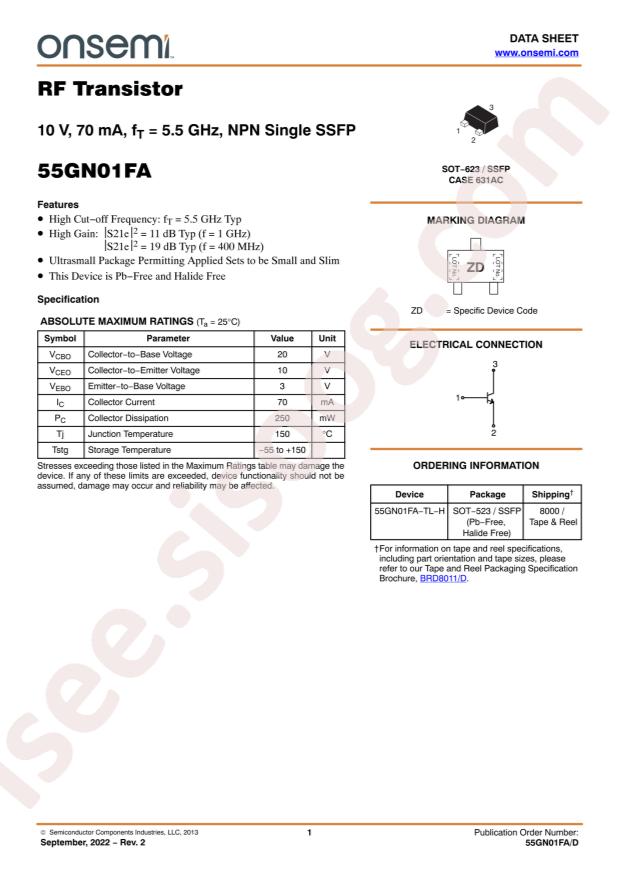

دیتاشیت 55GN01FA-TL-H
مشخصات دیتاشیت
| نام دیتاشیت |
55GN01FA
|
| حجم فایل |
512.013
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
9
|
مشخصات
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Transistor Type:
NPN
-
Voltage - Collector Emitter Breakdown (Max):
10V
-
Frequency - Transition:
4.5GHz ~ 5.5GHz
-
Noise Figure (dB Typ @ f):
1.9dB @ 1GHz
-
Gain:
11dB ~ 19dB @ 1GHz ~ 400MHz
-
Power - Max:
250mW
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
100 @ 10mA, 5V
-
Current - Collector (Ic) (Max):
70mA
-
Operating Temperature:
150°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
SC-81
-
Supplier Device Package:
3-SSFP
-
Base Part Number:
55GN01
-
detail:
RF Transistor NPN 10V 70mA 4.5GHz ~ 5.5GHz 250mW Surface Mount 3-SSFP
