NTND31225CZTAG دیتاشیت

مشخصات دیتاشیت

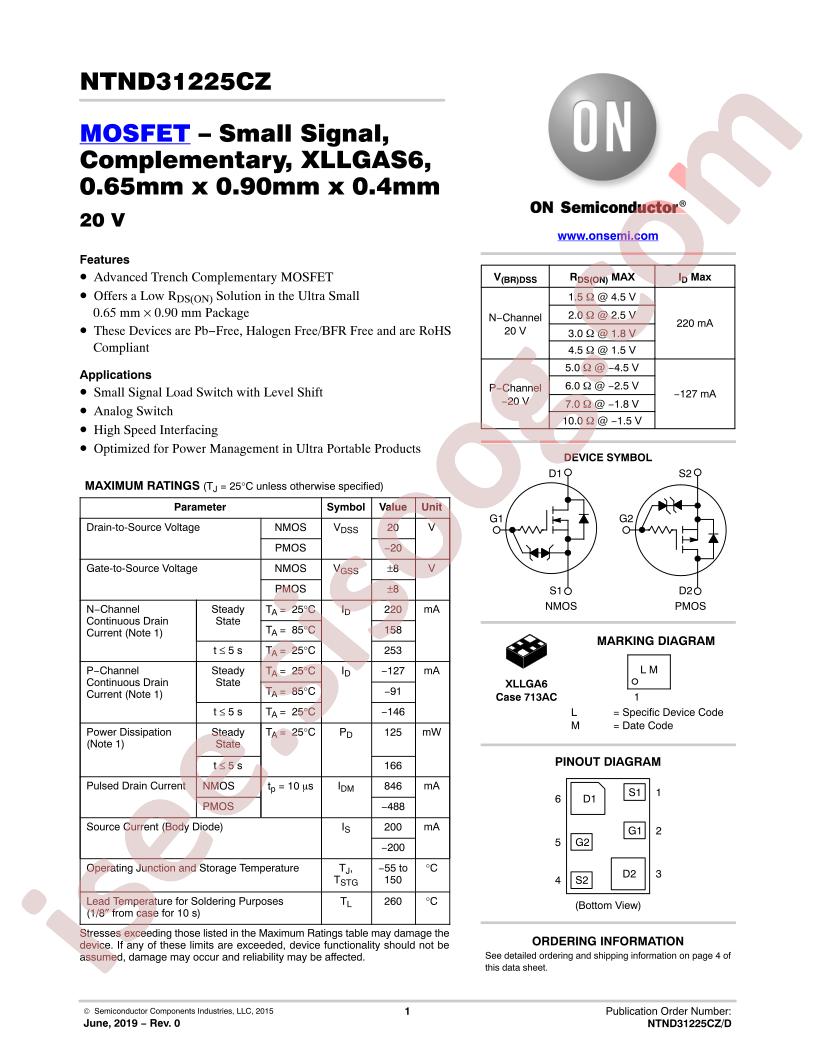

مشاهده دیتاشیت NTND31225CZ	دانلود دیتاشیت

مستندات دیگری یافت نشد!

Manufacturer: ON Semiconductor
Series: Automotive, AEC-Q101
Packaging: Tape & Reel (TR)
Part Status: Active
FET Type: N and P-Channel Complementary
FET Feature: Standard
Drain to Source Voltage (Vdss): 20V
Current - Continuous Drain (Id) @ 25°C: 220mA (Ta), 127mA (Ta)
Rds On (Max) @ Id, Vgs: 1.5Ohm @ 100mA, 4.5V, 5Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id: 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: -
Input Capacitance (Ciss) (Max) @ Vds: 12.3pF @ 15V, 12.8pF @ 15V
Power - Max: 125mW (Ta)
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: 6-XFLGA
Supplier Device Package: 6-XLLGA (.90x.65)
Base Part Number: NTND31
detail: Mosfet Array N and P-Channel Complementary 20V 220mA (Ta), 127mA (Ta) 125mW (Ta) Surface Mount 6-XLLGA (.90x.65)
