NLVHC1G14DFT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NLVHC1G14DFT1G
|
|
حجم فایل
|
76.969
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Series:
74HC
-
Category:
Logic ICs/Inverters
-
Datasheet:

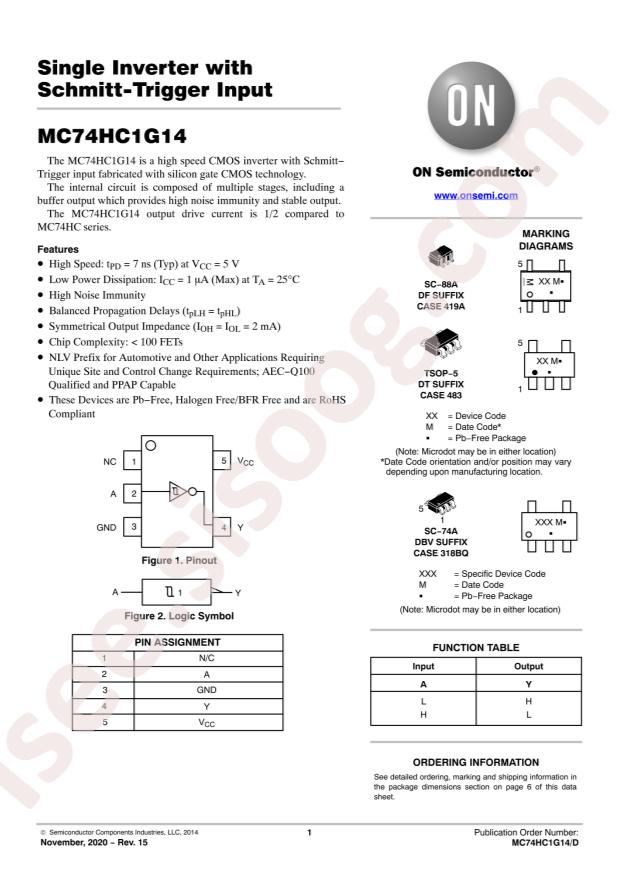

onsemi NLVHC1G14DFT1G
-
Input Type:
Schmitt Trigger
-
Sink Current:
2.6mA
-
Source Current:
2.6mA
-
Number of Inputs:
1
-
Number of Circuits:
1
-
Supply Current (Max):
1uA
-
Low level range (VIL):
0.9V~1.65V
-
Max Propagation Delay:
17ns@6V,50pF
-
Operating Temperature:
-55°C~+125°C
-
High level range (VIH):
2.2V~3.85V
-
Supply Voltage(Single):
2V~6V
-
Package:
SC-88A
-
Manufacturer:
onsemi
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Logic Type:
Inverter
-
Features:
Schmitt Trigger
-
Voltage - Supply:
2V ~ 6V
-
Current - Quiescent (Max):
1µA
-
Current - Output High, Low:
2.6mA, 2.6mA
-
Logic Level - Low:
0.9V ~ 1.65V
-
Logic Level - High:
2.2V ~ 3.85V
-
Max Propagation Delay @ V, Max CL:
17ns @ 6V, 50pF
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SC-88A (SC-70-5/SOT-353)
-
Package / Case:
5-TSSOP, SC-70-5, SOT-353
-
Base Part Number:
NLVHC1
-
detail:

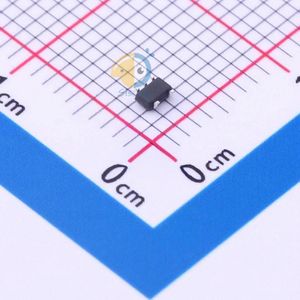

Inverter IC 1 Channel Schmitt Trigger SC-88A (SC-70-5/SOT-353)
