دیتاشیت NRVBA120ET3G-VF01
مشخصات دیتاشیت
| نام دیتاشیت | MBRA120E, NRVBA120E |
|---|---|
| حجم فایل | 249.85 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 6 |
دانلود دیتاشیت MBRA120E, NRVBA120E |

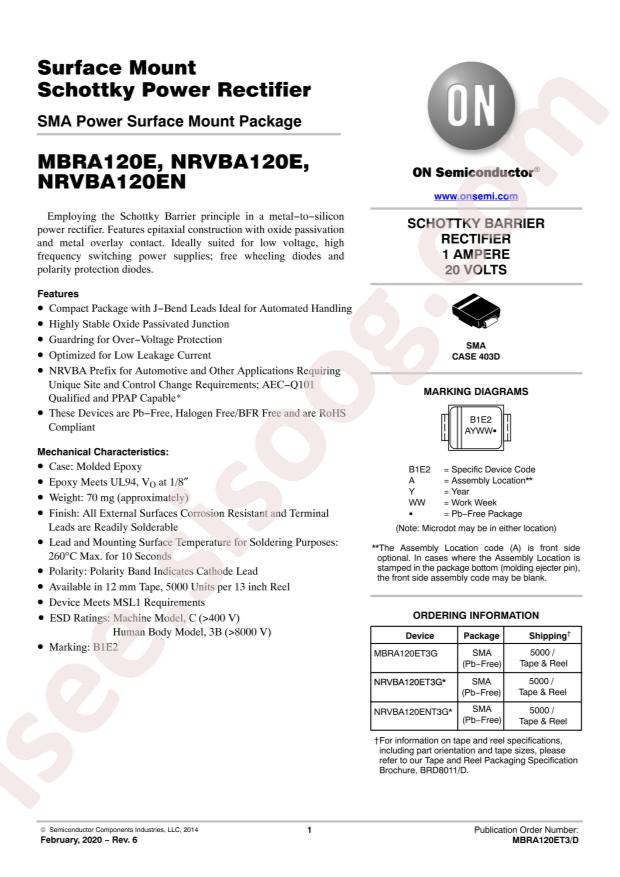

MBRA120E, NRVBA120E Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Diodes/Schottky Barrier Diodes (SBD)
- Datasheet: onsemi NRVBA120ET3G-VF01
- Diode Configuration: -
- Reverse Voltage (Vr): 20V
- Forward Voltage (Vf@If): 595mV@2A
- Reverse Leakage Current (Ir): 10uA@20V
- Average Rectified Current (Io): 1A
- Package: SMA
- Manufacturer: onsemi
- Series: Automotive, AEC-Q101
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 530mV @ 1A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 10µA @ 20V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: SMA
- Operating Temperature - Junction: -55°C ~ 150°C
- Base Part Number: NRVBA12
- detail: Diode Schottky 20V 1A Surface Mount SMA
