CSPEMI204 دیتاشیت

مشخصات دیتاشیت

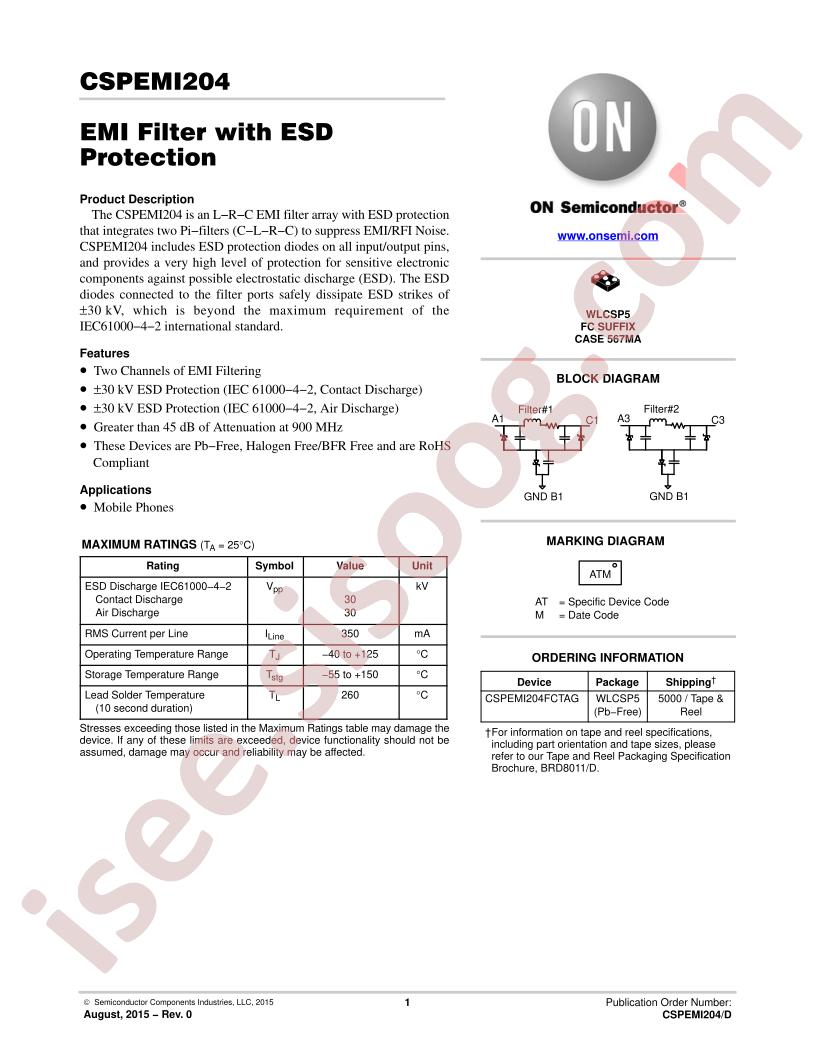

مشاهده دیتاشیت CSPEMI204	دانلود دیتاشیت

RoHS: true
Category: Bead/Filter/EMI Optimization/EMI Filters (LC, RC Networks)
Datasheet: onsemi CSPEMI204FCTAG
Capacitance: 250pF
Filter Order: 2
ESD Protection: Yes
DC Rated Voltage: 3V
Attenuation Value: 45dB@900MHz
Number of Channels: 2
OperatingTemperature: -40°C~+125°C
Frequency - Cutoff or Center: 25MHz
Package: WLCSP-5
Manufacturer: onsemi
Series: -
Packaging: Tape & Reel (TR)
Part Status: Active
Type: Low Pass
Technology: LC (Pi), RC (Pi)
Center / Cutoff Frequency: 25MHz (Cutoff)
Resistance - Channel (Ohms): 3
Current: 350mA
Values: C = 250pF
Operating Temperature: -40°C ~ 125°C
Applications: Data Lines for Mobile Devices
Voltage - Rated: 3V
Mounting Type: Surface Mount
Package / Case: 5-XFBGA, WLCSP
Size / Dimension: 0.050" L x 0.035" W (1.26mm x 0.89mm)
Height: 0.020" (0.50mm)
Base Part Number: CSPEMI2
detail: LC (Pi), RC (Pi) EMI Filter 2nd Order Low Pass 2 Channel C = 250pF 350mA 5-XFBGA, WLCSP
