CPH5541-TL-E دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت CPH5541-TL-E	دانلود دیتاشیت

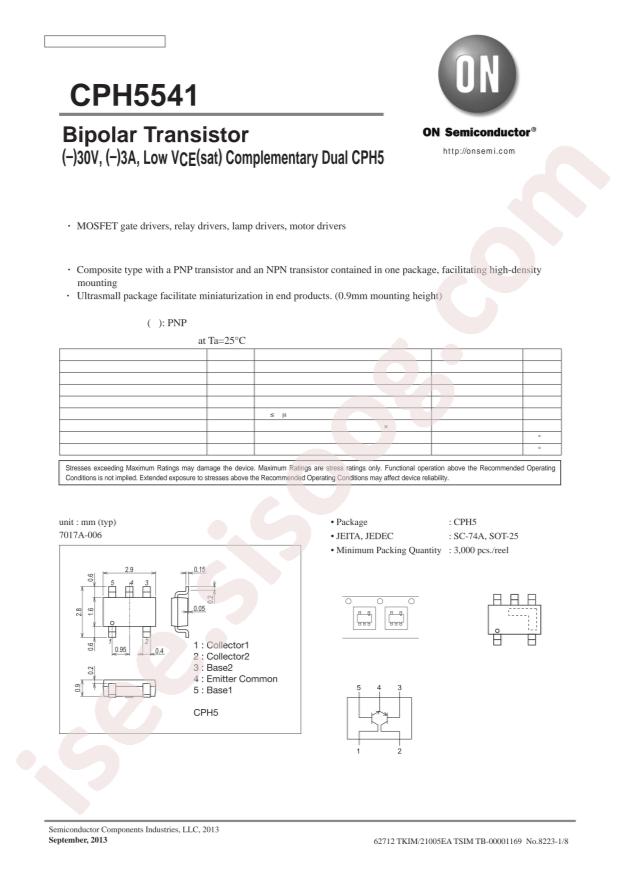

CPH5541 8 pages

RoHS: true
Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
Datasheet: onsemi CPH5541-TL-E
Transistor Type: 1PCSNPN&1PCSPNP(耦合发射器)
Collector Current (Ic): 700mA
Power Dissipation (Pd): 600mW
Transition Frequency (fT): 540MHz
DC Current Gain (hFE@Ic,Vce): 300@50mA,2V
Collector Cut-Off Current (Icbo): 100nA
Collector-Emitter Breakdown Voltage (Vceo): null;30V
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 190mV@10mA,200mA
Package: CPH-5
Manufacturer: onsemi
Series: -
Packaging: Tape & Reel (TR)
Part Status: Active
Current - Collector (Ic) (Max): 700mA
Voltage - Collector Emitter Breakdown (Max): 40V, 30V
Vce Saturation (Max) @ Ib, Ic: 190mV @ 10mA, 200mA
Current - Collector Cutoff (Max): 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce: 300 @ 50mA, 2V
Power - Max: 600mW
Frequency - Transition: 540MHz
Operating Temperature: 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: SC-74A, SOT-753
Supplier Device Package: 5-CPH
Base Part Number: CPH554
detail: Bipolar (BJT) Transistor Array NPN, PNP (Emitter Coupled) 40V, 30V 700mA 540MHz 600mW Surface Mount 5-CPH
