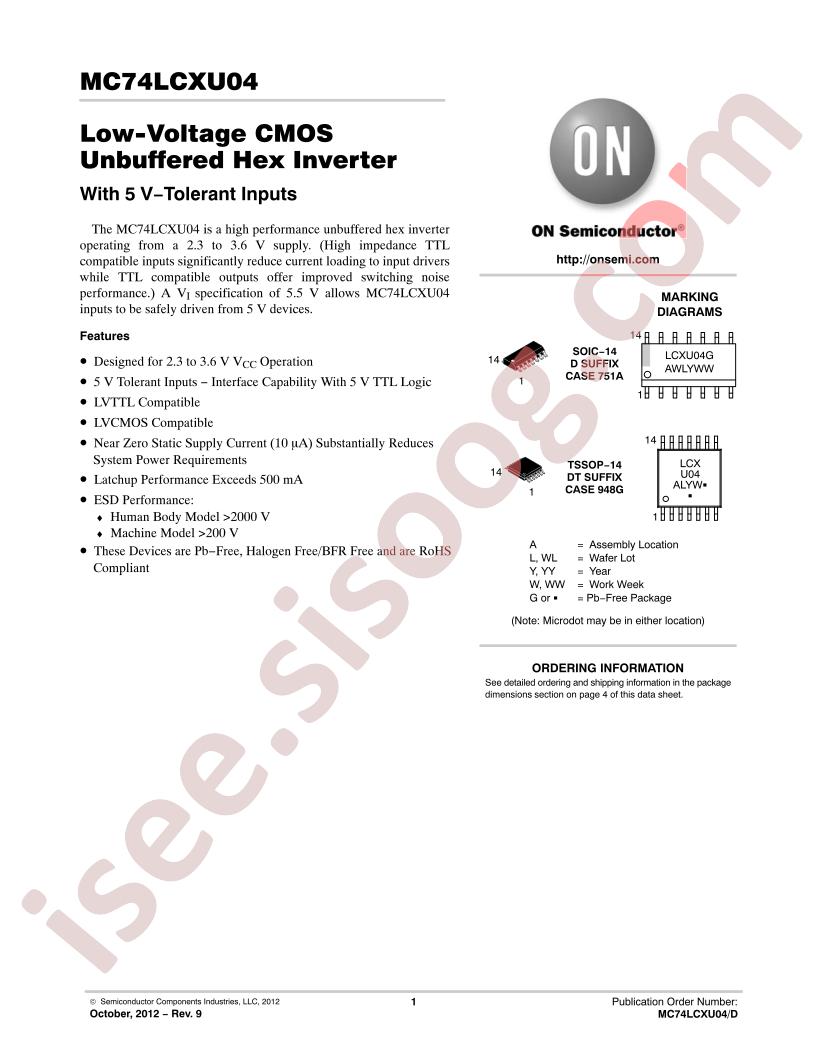

MC74LCXU04 دیتاشیت

MC74LCXU04

مشخصات دیتاشیت

نام دیتاشیت MC74LCXU04
حجم فایل 123.536 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

مشاهده دیتاشیت MC74LCXU04

دانلود دیتاشیت

سایر مستندات

MC74LCXU04DR2G 9 pages

مشخصات فنی

  • RoHS: true
  • Series: 74LCX
  • Category: Logic ICs/Inverters
  • Datasheet: onsemi MC74LCXU04DTR2G
  • Input Type: -
  • Sink Current: 16mA
  • Source Current: 18mA
  • Number of channels: 6
  • Supply Current (Max): 10uA
  • Low level range (VIL): 0.55V
  • Max Propagation Delay: 3.6ns@3.3V,50pF
  • Operating Temperature: -40°C~+85°C
  • High level range (VIH): 1.7V~2.7V
  • Supply Voltage(Single): 2V~3.6V
  • Package: TSSOP-14
  • Manufacturer: onsemi
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • Logic Type: Inverter
  • Number of Circuits: 6
  • Number of Inputs: 6
  • Features: -
  • Voltage - Supply: 2V ~ 3.6V
  • Current - Quiescent (Max): 10µA
  • Current - Output High, Low: 18mA, 16mA
  • Logic Level - Low: 0.55V
  • Logic Level - High: 1.7V ~ 2.7V
  • Max Propagation Delay @ V, Max CL: 3.6ns @ 3.3V, 50pF
  • Mounting Type: Surface Mount
  • Supplier Device Package: 14-TSSOP
  • Package / Case: 14-TSSOP (0.173", 4.40mm Width)
  • Base Part Number: MC74LCX
  • detail: Inverter IC 6 Channel 14-TSSOP
