SZNUP2115LT1G دیتاشیت

SZNUP2115LT1G

مشخصات دیتاشیت

نام دیتاشیت SZNUP2115LT1G
حجم فایل 72.914 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

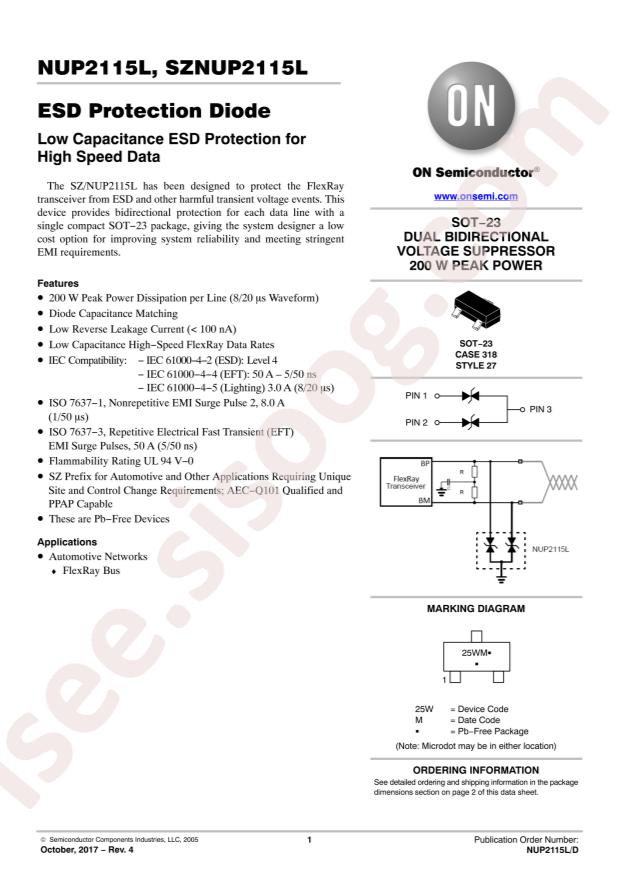

مشاهده دیتاشیت SZNUP2115LT1G

دانلود دیتاشیت

سایر مستندات

NUP2115L, SZNUP2115L 5 pages

مشخصات فنی

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/TVS
  • Datasheet: onsemi SZNUP2115LT1G
  • Breakdown Voltage: 26.2V
  • Bidirectional Channels: 2
  • Maximum Clamping Voltage: 50V
  • Reverse Stand-Off Voltage (Vrwm): 24V
  • Peak Pulse Current (Ipp)@10/1000us: 3A@8/20us
  • Peak Pulse Power Dissipation (Ppp)@10/1000us: 200W
  • Package: SOT-23-3
  • Manufacturer: onsemi
  • Series: Automotive, AEC-Q101
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Type: Zener
  • Voltage - Reverse Standoff (Typ): 24V (Min)
  • Voltage - Breakdown (Min): 26.2V
  • Voltage - Clamping (Max) @ Ipp: 50V
  • Current - Peak Pulse (10/1000µs): 3A (8/20µs)
  • Power - Peak Pulse: 200W
  • Power Line Protection: No
  • Applications: Automotive
  • Capacitance @ Frequency: 10pF @ 1MHz
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package: SOT-23-3 (TO-236)
  • Base Part Number: NUP2115
  • detail: 50V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3 (TO-236)
