NVTFS5C478NLTAG دیتاشیت

NVTFS5C478NLTAG

مشخصات دیتاشیت

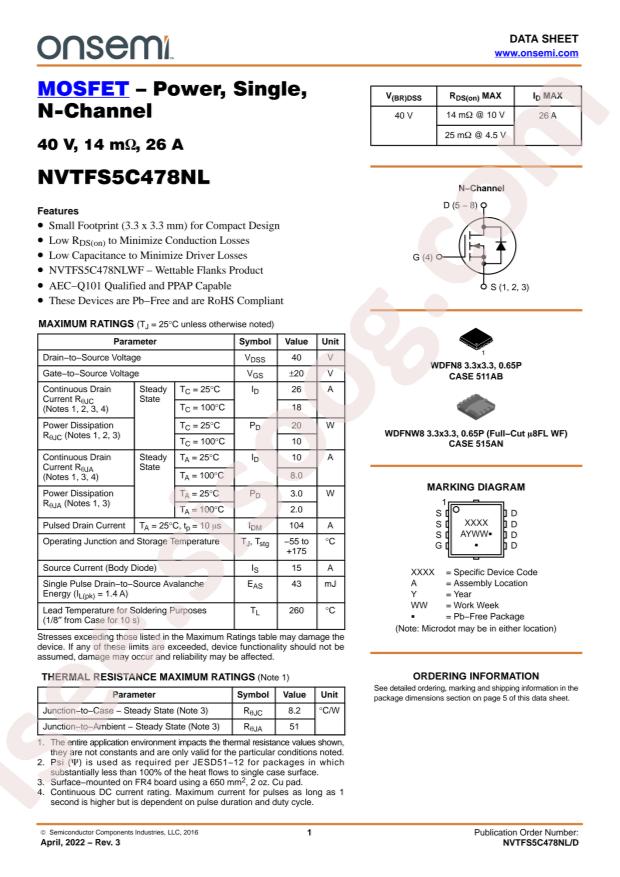

نام دیتاشیت NVTFS5C478NLTAG
حجم فایل 96.958 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت NVTFS5C478NLTAG

دانلود دیتاشیت

سایر مستندات

NVTFS5C478NL 6 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi NVTFS5C478NLTAG
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Power Dissipation (Pd): 20W
  • Total Gate Charge (Qg@Vgs): 3.8nC@4.5V
  • Drain Source Voltage (Vdss): 40V
  • Input Capacitance (Ciss@Vds): 400pF@25V
  • Continuous Drain Current (Id): 26A
  • Gate Threshold Voltage (Vgs(th)@Id): 1.2V@250uA
  • Reverse Transfer Capacitance (Crss@Vds): 8pF@25V
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 11.5mΩ@10V,5A
  • Package: DFN-8(3x3)
  • Manufacturer: onsemi
  • Series: Automotive, AEC-Q101
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 40V
  • Current - Continuous Drain (Id) @ 25°C: 26A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 14mOhm @ 5A, 10V
  • Vgs(th) (Max) @ Id: 2.2V @ 20µA
  • Gate Charge (Qg) (Max) @ Vgs: 8nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 400pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 20W (Tc)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 8-WDFN (3.3x3.3)
  • Package / Case: 8-PowerWDFN
  • Base Part Number: NVTFS5
  • detail: N-Channel 40V 26A (Tc) 20W (Tc) Surface Mount 8-WDFN (3.3x3.3)
