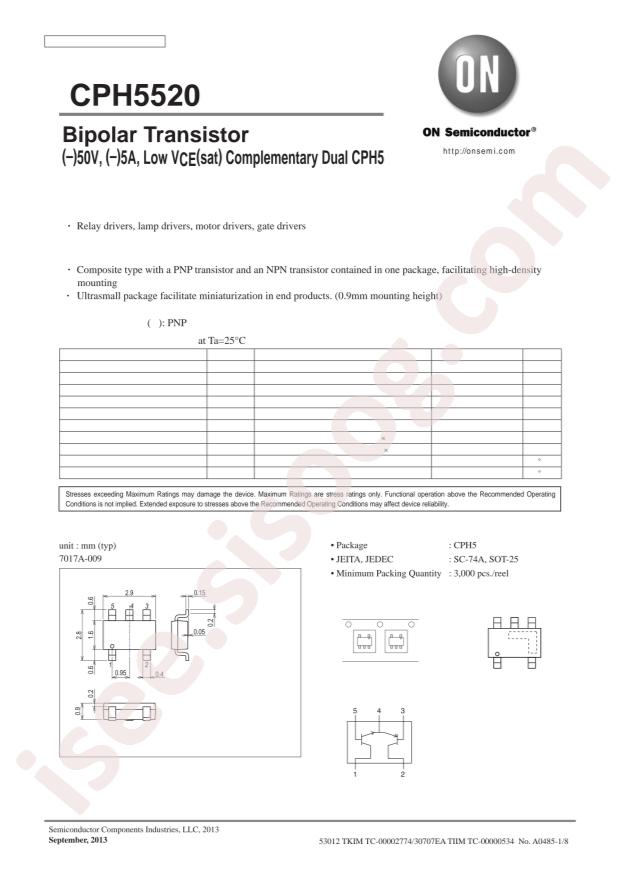

CPH5520-TL-E دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
CPH5520-TL-E
|
|
حجم فایل
|
56.077
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi CPH5520-TL-E
-
Transistor Type:
NPN&PNP(耦合发射器)
-
Collector Current (Ic):
2A
-
Power Dissipation (Pd):
1.2W
-
Transition Frequency (fT):
420MHz
-
DC Current Gain (hFE@Ic,Vce):
200@100mA,2V
-
Collector Cut-Off Current (Icbo):
1uA
-
Collector-Emitter Breakdown Voltage (Vceo):
80V;50V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
260mV@50mA,1A
-
Package:
CPH-5
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
2A
-
Voltage - Collector Emitter Breakdown (Max):
80V, 50V
-
Vce Saturation (Max) @ Ib, Ic:
260mV @ 50mA, 1A
-
Current - Collector Cutoff (Max):
1µA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
200 @ 100mA, 2V
-
Power - Max:
1.2W
-
Frequency - Transition:
420MHz
-
Operating Temperature:
150°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
SC-74A, SOT-753
-
Supplier Device Package:
5-CPH
-
Base Part Number:
CPH552
-
detail:
Bipolar (BJT) Transistor Array NPN, PNP (Emitter Coupled) 80V, 50V 2A 420MHz 1.2W Surface Mount 5-CPH
