NVTFS4C10NTAG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|

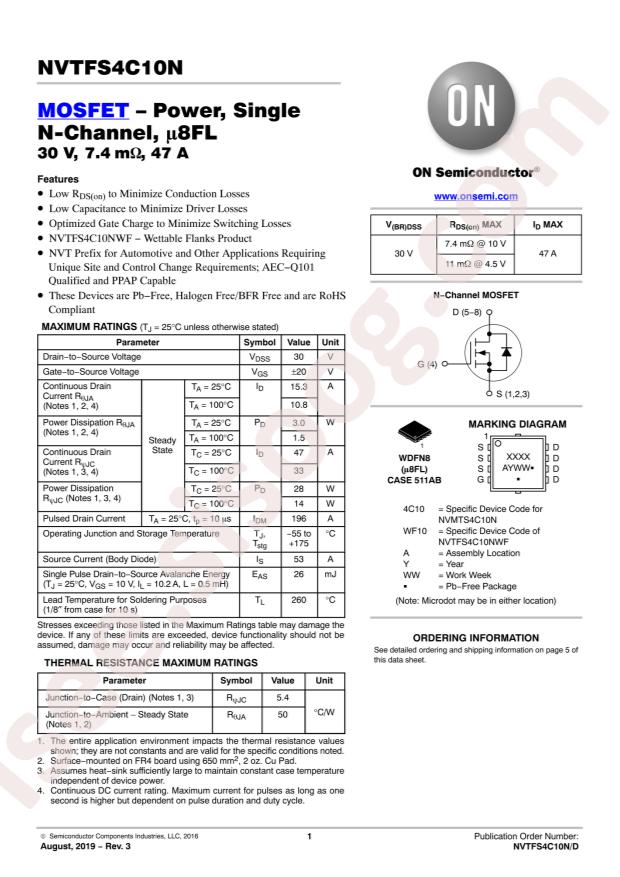

NVTFS4C10NTAG
|
|
حجم فایل
|
98.506
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NVTFS4C10NTAG
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
3W;28W
-
Total Gate Charge (Qg@Vgs):
19.3nC@10V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
993pF@15V
-
Continuous Drain Current (Id):
15.3A;47A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.2V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
7.4mΩ@30A,10V
-
Package:
DFN-8(3x3)
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
15.3A (Ta), 47A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
7.4mOhm @ 30A, 10V
-
Vgs(th) (Max) @ Id:
2.2V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
19.3nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
993pF @ 15V
-
FET Feature:
-
-
Power Dissipation (Max):
3W (Ta), 28W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-WDFN (3.3x3.3)
-
Package / Case:
8-PowerWDFN
-
Base Part Number:
NVTFS4
-
detail:
N-Channel 30V 15.3A (Ta), 47A (Tc) 3W (Ta), 28W (Tc) Surface Mount 8-WDFN (3.3x3.3)
