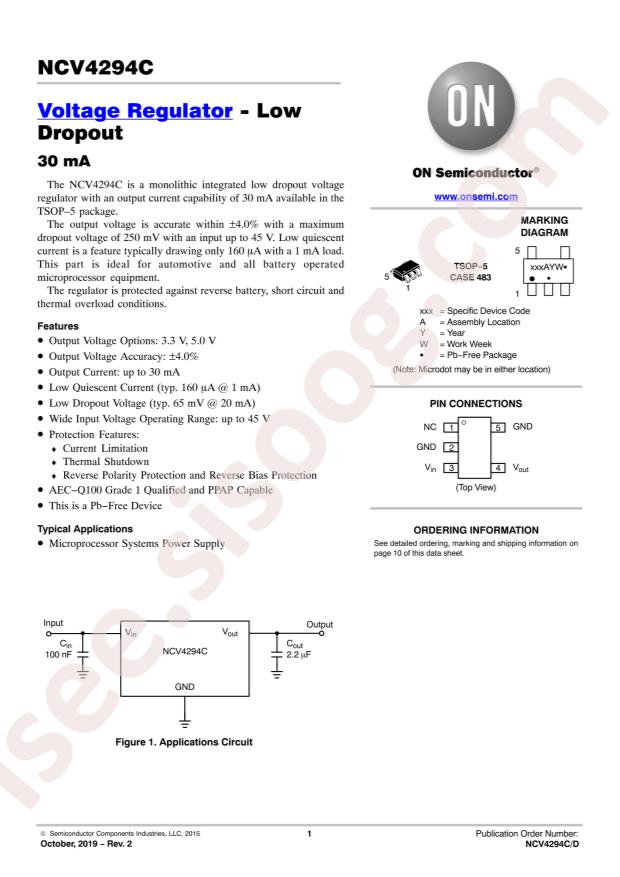

NCV4294CSN50T1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NCV4294CSN50T1G
|
|
حجم فایل
|
65.316
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
onsemi NCV4294CSN50T1G
-
Output Current:
30mA
-
Output Voltage:
5V
-
Dropout Voltage:
0.25V@(20mA)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
45V
-
Operating Temperature:
-40°C~+150°C@(Tj)
-
Quiescent Current (Ground Current):
170uA
-
Power Supply Rejection Ratio (PSRR):
60dB@(100Hz)
-
Package:
SOT-23-5
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q100
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Output Type:
Fixed
-
Number of Regulators:
1
-
Voltage - Input (Max):
45V
-
Voltage - Output (Min/Fixed):
5V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.25V @ 20mA
-
Current - Output:
30mA
-
Current - Quiescent (Iq):
170µA
-
Current - Supply (Max):
4mA
-
PSRR:
60dB (100Hz)
-
Control Features:
-
-
Protection Features:
Over Current, Over Temperature, Reverse Polarity, Short Circuit
-
Mounting Type:
Surface Mount
-
Package / Case:
SOT-23-5 Thin, TSOT-23-5
-
Supplier Device Package:
5-TSOP
-
Base Part Number:
NCV4294
-
detail:
Linear Voltage Regulator IC 1 Output 30mA 5-TSOP
