NLVVHC1G02DFT2G دیتاشیت

NLVVHC1G02DFT2G

مشخصات دیتاشیت

نام دیتاشیت NLVVHC1G02DFT2G
حجم فایل 79.628 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

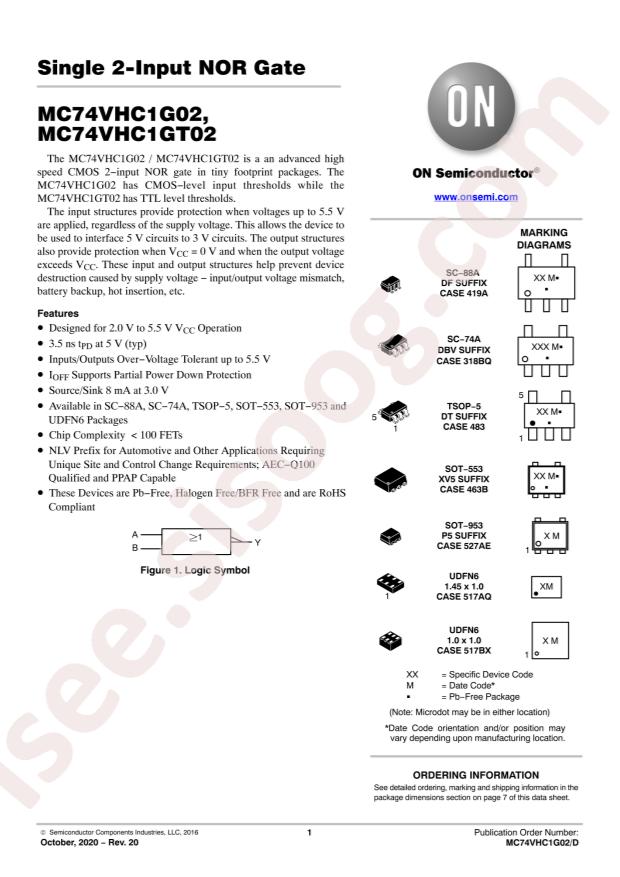

مشاهده دیتاشیت NLVVHC1G02DFT2G

دانلود دیتاشیت

سایر مستندات

مستندات دیگری یافت نشد!

مشخصات فنی

  • RoHS: true
  • Series: 74VHC
  • Category: Logic ICs/Gates
  • Datasheet: onsemi NLVVHC1G02DFT2G
  • Sink Current: 8mA
  • Source Current: 8mA
  • Supply Voltage: 2V~5.5V
  • Logic Gate Type: NORGate
  • Number of Channels: 1
  • Low Level Range (VIL): 0.5V~1.65V
  • Operating Temperature: -55°C~+125°C
  • High Level Range (VIH): 1.5V~3.85V
  • Propagation Delay Time: 7.5ns@5V,50pF
  • Quiescent Current (Max): 1uA
  • Package: SC-88A
  • Manufacturer: onsemi
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Logic Type: NOR Gate
  • Number of Circuits: 1
  • Number of Inputs: 2
  • Features: -
  • Voltage - Supply: 2V ~ 5.5V
  • Current - Quiescent (Max): 1µA
  • Current - Output High, Low: 8mA, 8mA
  • Logic Level - Low: 0.5V ~ 1.65V
  • Logic Level - High: 1.5V ~ 3.85V
  • Max Propagation Delay @ V, Max CL: 7.5ns @ 5V, 50pF
  • Mounting Type: Surface Mount
  • Supplier Device Package: SC-88A (SC-70-5/SOT-353)
  • Package / Case: 5-TSSOP, SC-70-5, SOT-353
  • Base Part Number: NLVVHC1
  • detail: NOR Gate IC 1 Channel SC-88A (SC-70-5/SOT-353)
