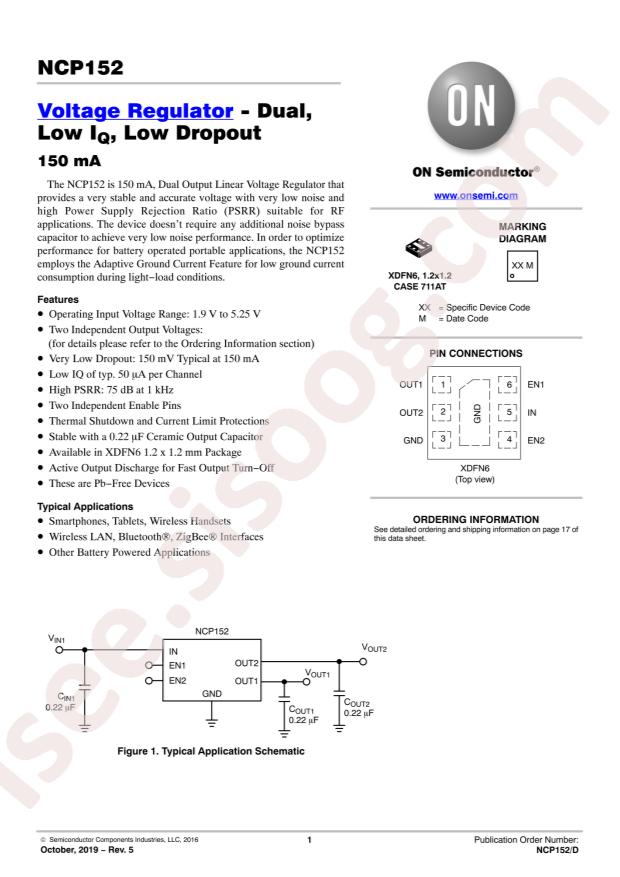

NCP152MX150280TCG دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | NCP152MX150280TCG |
|---|---|
| حجم فایل | 72.345 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 18 |
دانلود دیتاشیت NCP152MX150280TCG |
دانلود دیتاشیت |
|---|
سایر مستندات
NCP152 18 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: onsemi NCP152MX150280TCG
- Output Type: -
- Package: DFN-6(1.2x1.2)
- Manufacturer: onsemi
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Output Configuration: Positive
- Number of Regulators: 2
- Voltage - Input (Max): 5.25V
- Voltage - Output (Min/Fixed): 1.5V, 2.8V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.5V @ 150mA, 0.26V @ 150mA
- Current - Output: 150mA, 150mA
- Current - Quiescent (Iq): 100µA
- Current - Supply (Max): 200µA
- PSRR: 75dB (1kHz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 6-XFDFN Exposed Pad
- Supplier Device Package: 6-XDFN (1.2x1.2)
- Base Part Number: NCP152
- detail: Linear Voltage Regulator IC 2 Output 150mA, 150mA 6-XDFN (1.2x1.2)
