NTLJS4114NTAG دیتاشیت

NTLJS4114NTAG

مشخصات دیتاشیت

نام دیتاشیت NTLJS4114NTAG
حجم فایل 96.172 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

مشاهده دیتاشیت NTLJS4114NTAG

دانلود دیتاشیت

سایر مستندات

NTLJS4114N 7 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs

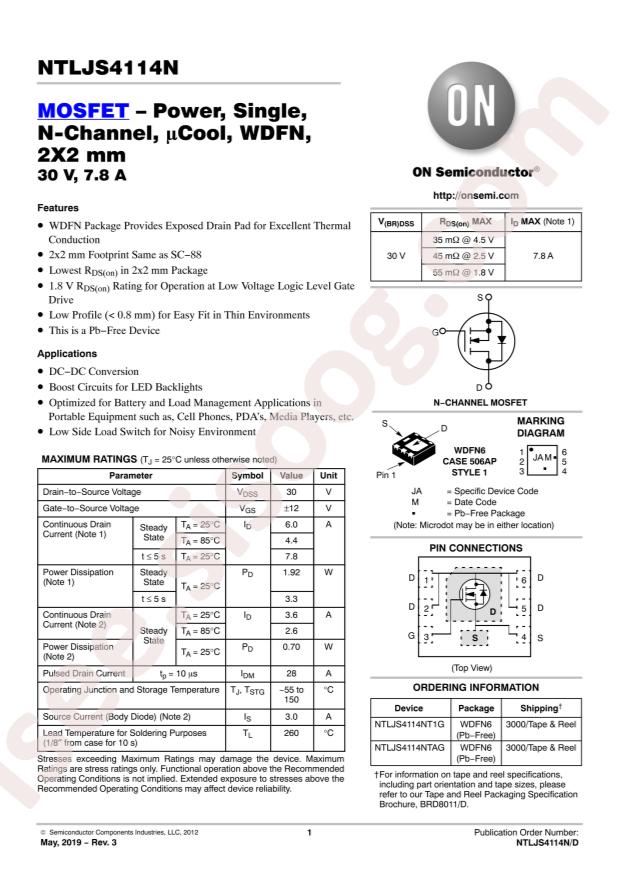

  • Datasheet: onsemi NTLJS4114NTAG
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 700mW
  • Total Gate Charge (Qg@Vgs): 13nC@4.5V
  • Drain Source Voltage (Vdss): 30V
  • Input Capacitance (Ciss@Vds): 650pF@15V
  • Continuous Drain Current (Id): 3.6A
  • Gate Threshold Voltage (Vgs(th)@Id): 1V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 35mΩ@2A,4.5V
  • Package: DFN-6(2x2)
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 30V
  • Current - Continuous Drain (Id) @ 25°C: 3.6A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
  • Rds On (Max) @ Id, Vgs: 35mOhm @ 2A, 4.5V
  • Vgs(th) (Max) @ Id: 1V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 13nC @ 4.5V
  • Vgs (Max): ±12V
  • Input Capacitance (Ciss) (Max) @ Vds: 650pF @ 15V
  • FET Feature: -
  • Power Dissipation (Max): 700mW (Ta)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 6-WDFN (2x2)
  • Package / Case: 6-WDFN Exposed Pad
  • Base Part Number: NTLJS41
  • detail: N-Channel 30V 3.6A (Ta) 700mW (Ta) Surface Mount 6-WDFN (2x2)
