MC74AC(T)14 دیتاشیت

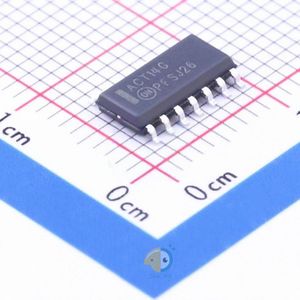

MC74AC(T)14

مشخصات دیتاشیت

نام دیتاشیت MC74AC(T)14
حجم فایل 84.457 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

دانلود دیتاشیت MC74AC(T)14

دانلود دیتاشیت

سایر مستندات

MC74AC14DTR2G 9 pages

مشخصات فنی

  • RoHS: true
  • Series: 74AC
  • Category: Logic ICs/Inverters
  • Datasheet: onsemi NLV74AC14DR2G
  • Sink Current: 24mA
  • Source Current: 24mA
  • Number of Inputs: 6
  • Number of Circuits: 6
  • Supply Current (Max): 4uA
  • Max Propagation Delay: 10ns@5V,50pF
  • Operating Temperature: -55°C~+125°C
  • Supply Voltage(Single): 2V~6V
  • Package: SOP-14
  • Manufacturer: onsemi
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Logic Type: Inverter
  • Features: -
  • Voltage - Supply: 2V ~ 6V
  • Current - Quiescent (Max): 4µA
  • Current - Output High, Low: 24mA, 24mA
  • Logic Level - Low: -
  • Logic Level - High: -
  • Max Propagation Delay @ V, Max CL: 10ns @ 5V, 50pF
  • Mounting Type: Surface Mount
  • Supplier Device Package: 14-SOIC
  • Package / Case: 14-SOIC (0.154", 3.90mm Width)
  • Base Part Number: NLV74
  • detail: Inverter IC 6 Channel 14-SOIC
