NSVS50031SB3T1G دیتاشیت

NSVS50031SB3T1G

مشخصات دیتاشیت

نام دیتاشیت NSVS50031SB3T1G
حجم فایل 78.391 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

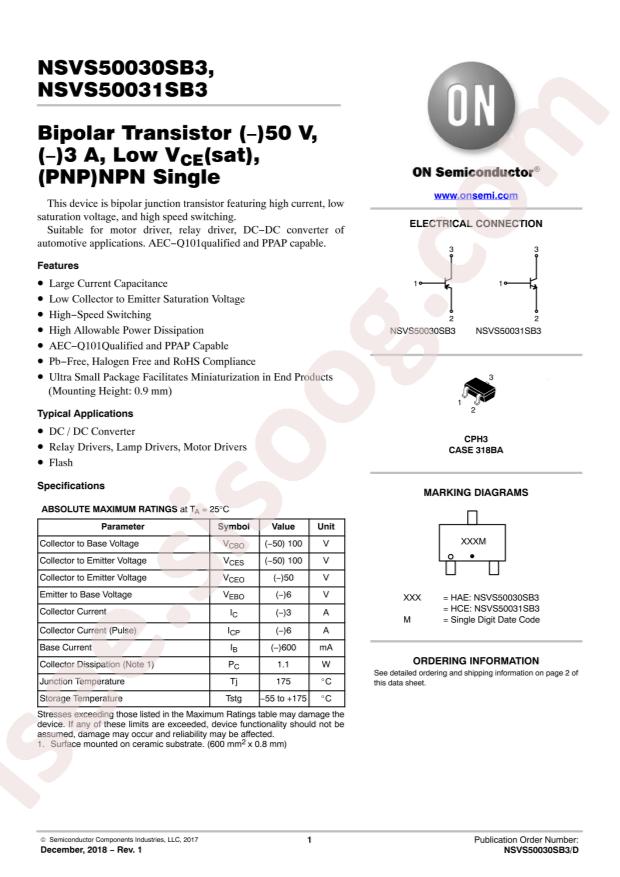

دانلود دیتاشیت NSVS50031SB3T1G

دانلود دیتاشیت

سایر مستندات

NSVS50030SB3, NSVS50031SB3 7 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: onsemi NSVS50031SB3T1G
  • Transistor Type: NPN
  • Collector Current (Ic): 3A
  • Power Dissipation (Pd): 1.1W
  • Transition Frequency (fT): 380MHz
  • DC Current Gain (hFE@Ic,Vce): 200@100mA,2V
  • Collector Cut-Off Current (Icbo): 1uA
  • Collector-Emitter Breakdown Voltage (Vceo): 50V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 210mV@100mA,2A
  • Package: CPH-3
  • Manufacturer: onsemi
  • Series: Automotive, AEC-Q101
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Current - Collector (Ic) (Max): 3A
  • Voltage - Collector Emitter Breakdown (Max): 50V
  • Vce Saturation (Max) @ Ib, Ic: 210mV @ 100mA, 2A
  • Current - Collector Cutoff (Max): 1µA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 200 @ 100mA, 2V
  • Power - Max: 1.1W
  • Frequency - Transition: 380MHz
  • Operating Temperature: 175°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package: 3-CPH
  • Base Part Number: NSVS50
  • detail: Bipolar (BJT) Transistor NPN 50V 3A 380MHz 1.1W Surface Mount 3-CPH
