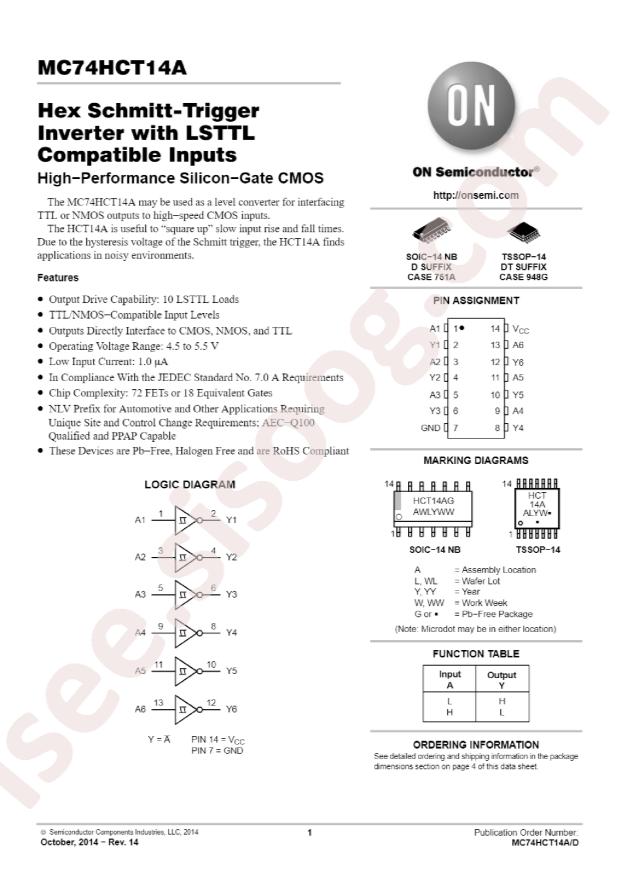

NLV74HCT14ADTR2G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NLV74HCT14ADTR2G
|
|
حجم فایل
|
71.375
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Series:
74HCT
-
Category:
Logic ICs/Inverters
-
Datasheet:
onsemi NLV74HCT14ADTR2G
-
Input Type:
Schmitt Trigger
-
Sink Current:
4mA
-
Source Current:
4mA
-
Number of channels:
6
-
Supply Current (Max):
1uA
-
Low level range (VIL):
0.5V~0.6V
-
Max Propagation Delay:
32ns@5V,50pF
-
Operating Temperature:
-55°C~+125°C
-
High level range (VIH):
1.9V~2.1V
-
Supply Voltage(Single):
4.5V~5.5V
-
Package:
TSSOP-14
-
Manufacturer:
onsemi
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Logic Type:
Inverter
-
Number of Circuits:
6
-
Number of Inputs:
6
-
Features:
Schmitt Trigger
-
Voltage - Supply:
4.5V ~ 5.5V
-
Current - Quiescent (Max):
1µA
-
Current - Output High, Low:
4mA, 4mA
-
Logic Level - Low:
0.5V ~ 0.6V
-
Logic Level - High:
1.9V ~ 2.1V
-
Max Propagation Delay @ V, Max CL:
32ns @ 5V, 50pF
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
14-TSSOP
-
Package / Case:
14-TSSOP (0.173", 4.40mm Width)
-
Base Part Number:
NLV74
-
detail:
Inverter IC 6 Channel Schmitt Trigger 14-TSSOP
