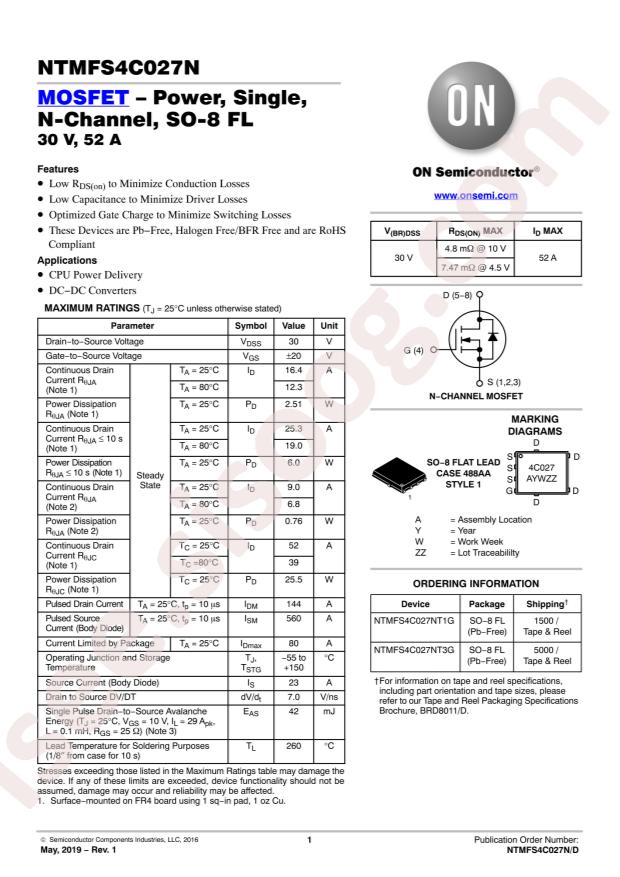

NTMFS4C027NT3G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NTMFS4C027NT3G
|
|
حجم فایل
|
97.995
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NTMFS4C027NT3G
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
25.5W
-
Total Gate Charge (Qg@Vgs):
8.4nC@4.5V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
1.113nF@15V
-
Continuous Drain Current (Id):
52A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.1V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
39pF@15V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
4mΩ@10V,18A
-
Package:
SO-8-FL-5.8mm
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
16.4A (Ta), 52A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
4.8mOhm @ 18A, 10V
-
Vgs(th) (Max) @ Id:
2.1V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
18.2nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
1670pF @ 15V
-
FET Feature:
-
-
Power Dissipation (Max):
2.51W (Ta), 25.5W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
5-DFN (5x6) (8-SOFL)
-
Package / Case:
8-PowerTDFN, 5 Leads
-
Base Part Number:
NTMFS4
-
detail:
N-Channel 30V 16.4A (Ta), 52A (Tc) 2.51W (Ta), 25.5W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)
