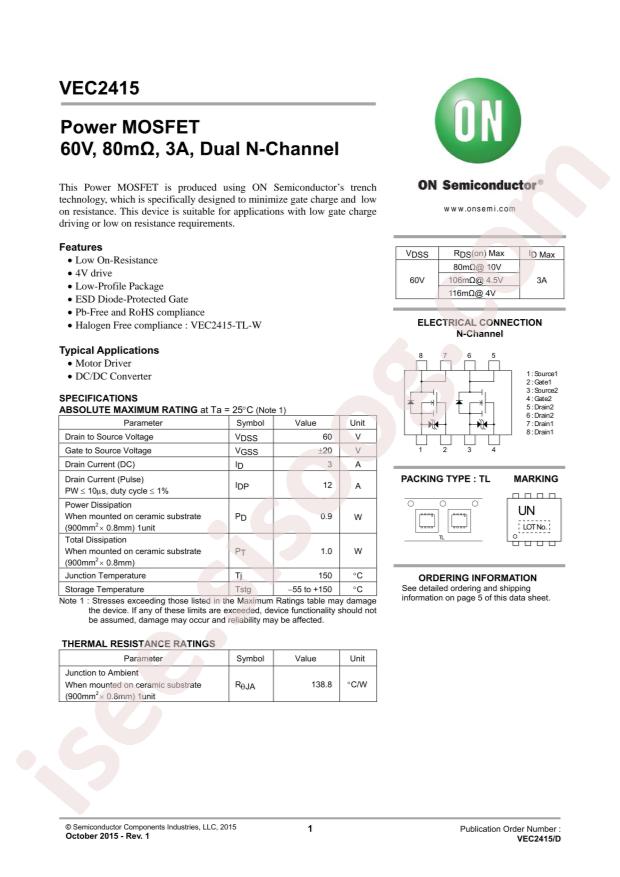

دیتاشیت VEC2415-TL-W-Z
مشخصات دیتاشیت
| نام دیتاشیت |
VEC2415
|
| حجم فایل |
650.129
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
Manufacturer:
ON Semiconductor
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
FET Type:
2 N-Channel (Dual)
-
FET Feature:
Standard
-
Drain to Source Voltage (Vdss):
60V
-
Current - Continuous Drain (Id) @ 25°C:
3A (Ta)
-
Rds On (Max) @ Id, Vgs:
80mOhm @ 1.5A, 10V
-
Vgs(th) (Max) @ Id:
2.6V @ 1mA
-
Gate Charge (Qg) (Max) @ Vgs:
10nC @ 10V
-
Input Capacitance (Ciss) (Max) @ Vds:
505pF @ 20V
-
Operating Temperature:
150°C (TJ)
-
Mounting Type:
Surface Mount
-

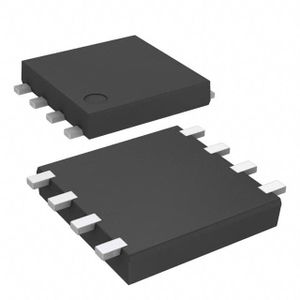

Package / Case:
8-SMD, Flat Lead
-
Supplier Device Package:
SOT-28FL/ECH8
-
Base Part Number:
VEC2415
-
detail:
Mosfet Array 2 N-Channel (Dual) 60V 3A (Ta) Surface Mount SOT-28FL/ECH8
