دیتاشیت LP2950ACZ-3.0RAG

LP2950, LP2951, NCV2951

مشخصات دیتاشیت

نام دیتاشیت LP2950, LP2951, NCV2951
حجم فایل 261.673 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

دانلود دیتاشیت LP2950, LP2951, NCV2951

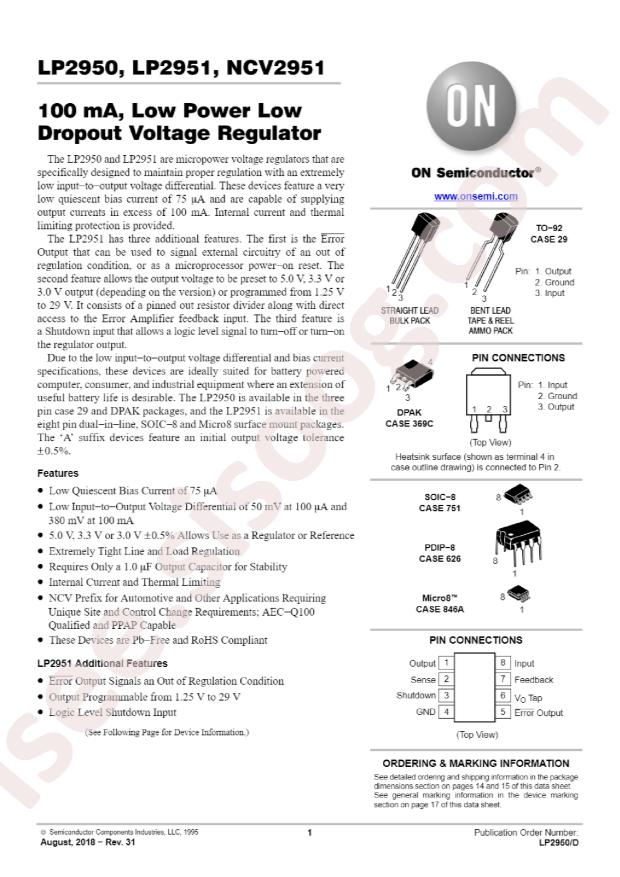

LP2950, LP2951, NCV2951 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: onsemi LP2950ACZ-3.0RAG
  • Output Current: 100mA
  • Output Voltage: 3V
  • Dropout Voltage: 0.45V@(100mA)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 35V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 120uA
  • Package: TO-92-3
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 30V
  • Voltage - Output (Min/Fixed): 3V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.45V @ 100mA
  • Current - Output: 100mA
  • Current - Quiescent (Iq): 120µA
  • Current - Supply (Max): 12mA
  • PSRR: -
  • Control Features: -
  • Protection Features: Over Current, Over Temperature
  • Mounting Type: Through Hole
  • Package / Case: TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
  • Supplier Device Package: TO-92-3
  • Base Part Number: LP295
  • detail: Linear Voltage Regulator IC 1 Output 100mA TO-92-3
