دیتاشیت FDMS7620S-F106
مشخصات دیتاشیت
| نام دیتاشیت |
FDMS7620S
|
| حجم فایل |
425.946
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
11
|
مشخصات
-
RoHS:
true
-
Type:
2 N-Channel(Half Bridge)
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi FDMS7620S-F106
-
Power Dissipation (Pd):
1W
-
Total Gate Charge (Qg@Vgs):
11nC@10V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
608pF@15V
-
Continuous Drain Current (Id):
10.1A;12.4A
-
Gate Threshold Voltage (Vgs(th)@Id):
3V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
20mΩ@10.1A,10V
-
Package:
Power-56-8
-
Manufacturer:
onsemi
-
Series:
PowerTrench®
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
FET Type:
2 N-Channel (Half Bridge)
-
FET Feature:
Standard
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
10.1A, 12.4A
-
Rds On (Max) @ Id, Vgs:
20mOhm @ 10.1A, 10V
-
Vgs(th) (Max) @ Id:
3V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
11nC @ 10V
-
Input Capacitance (Ciss) (Max) @ Vds:
608pF @ 15V
-
Power - Max:
1W
-
Mounting Type:
Sub-Base Mount
-

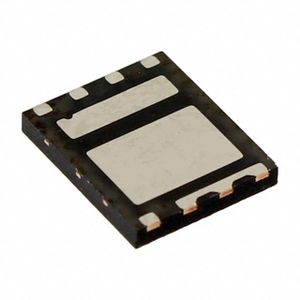

Package / Case:
8-PowerWDFN
-
Supplier Device Package:
Power56
-
Base Part Number:
FDMS76
-
detail:
Mosfet Array 2 N-Channel (Half Bridge) 30V 10.1A, 12.4A 1W Sub-Base Mount Power56
