دیتاشیت FDMC510P-F106

FDMC510P

مشخصات دیتاشیت

نام دیتاشیت FDMC510P
حجم فایل 318.331 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

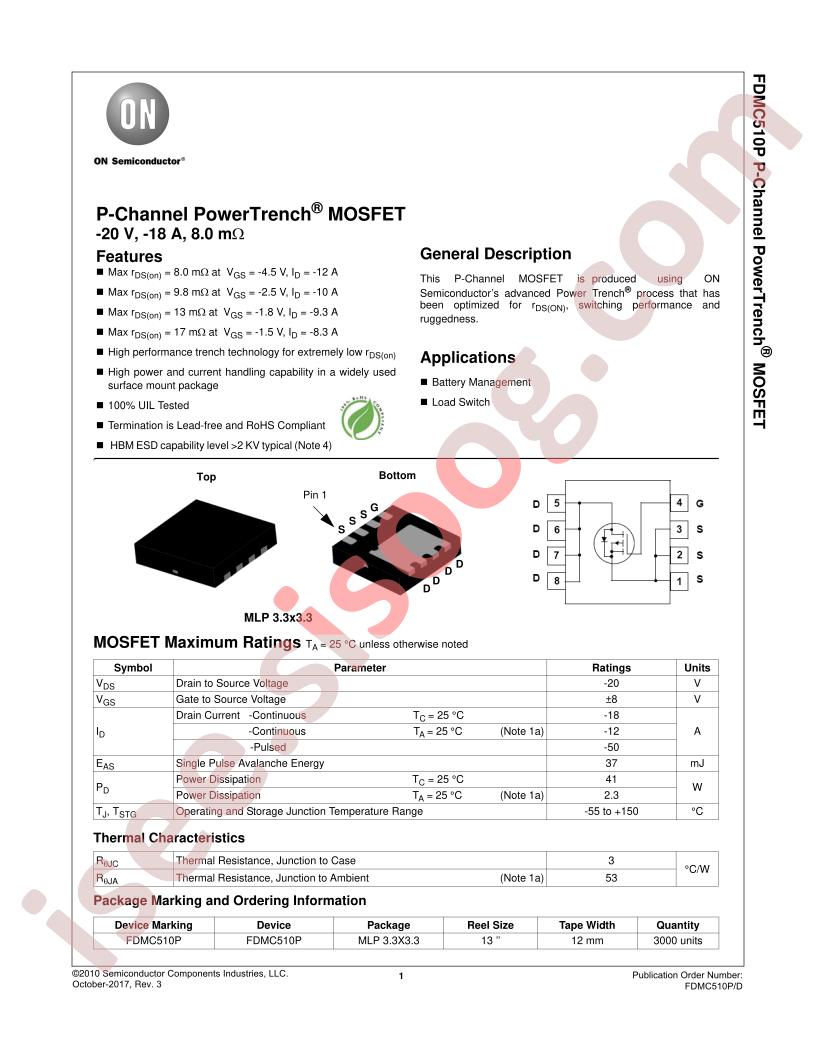

دانلود دیتاشیت FDMC510P

FDMC510P Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: PowerTrench®
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • FET Type: P-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 20V
  • Current - Continuous Drain (Id) @ 25°C: 12A (Ta), 18A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
  • Rds On (Max) @ Id, Vgs: 8mOhm @ 12A, 4.5V
  • Vgs(th) (Max) @ Id: 1V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 116nC @ 4.5V
  • Vgs (Max): ±8V
  • Input Capacitance (Ciss) (Max) @ Vds: 7860pF @ 10V
  • FET Feature: -
  • Power Dissipation (Max): 2.3W (Ta), 41W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 8-WDFN (3.3x3.3)
  • Package / Case: 8-PowerWDFN
  • Base Part Number: FDMC51
  • detail: P-Channel 20V 12A (Ta), 18A (Tc) 2.3W (Ta), 41W (Tc) Surface Mount 8-WDFN (3.3x3.3)
