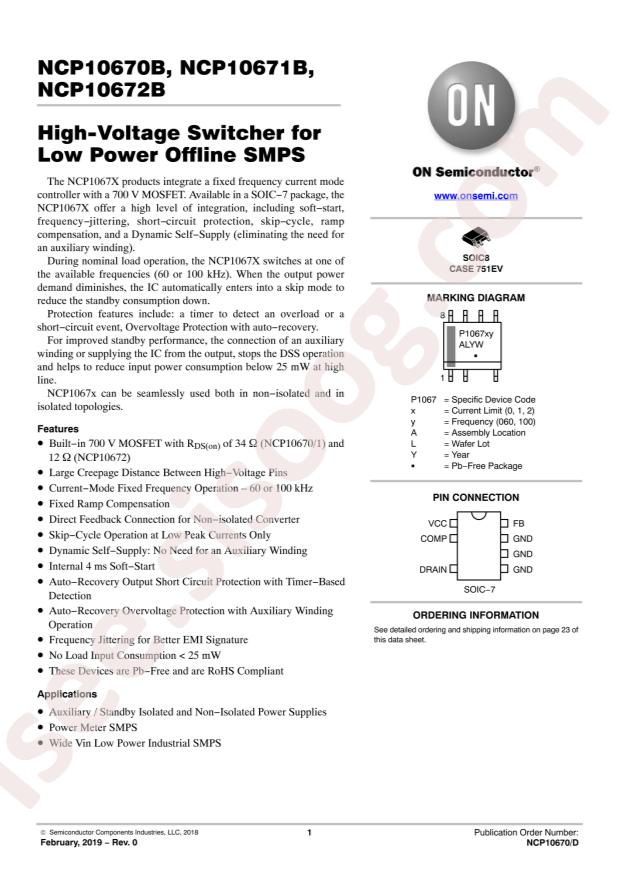

NCP10671BD060R2G دیتاشیت

NCP10671BD060R2G

مشخصات دیتاشیت

نام دیتاشیت NCP10671BD060R2G
حجم فایل 88.678 کیلوبایت
نوع فایل pdf
تعداد صفحات 25

دانلود دیتاشیت NCP10671BD060R2G

دانلود دیتاشیت

سایر مستندات

NCP10670B_71B_72B 24 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Datasheet: onsemi NCP10671BD060R2G
  • Package: SOIC-7
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Output Isolation: Either
  • Internal Switch(s): Yes
  • Voltage - Breakdown: 700V
  • Topology: Buck, Buck-Boost, Flyback
  • Voltage - Start Up: 9V
  • Voltage - Supply (Vcc/Vdd): 6.7V ~ 20V
  • Duty Cycle: 66%
  • Frequency - Switching: 60kHz
  • Power (Watts): 6.7W
  • Fault Protection: Current Limiting, Over Load, Over Voltage, Short Circuit
  • Control Features: Soft Start
  • Operating Temperature: 150°C (TJ)
  • Package / Case: 8-SOIC (0.154", 3.90mm Width), 7 Leads
  • Supplier Device Package: 8-SOIC
  • Mounting Type: Surface Mount
  • Base Part Number: NCP1067
  • detail: Converter Offline Buck, Buck-Boost, Flyback Topology 60kHz 8-SOIC
