دیتاشیت LB11970FV-TLM-H

LB11970FV-TLM-H

مشخصات دیتاشیت

نام دیتاشیت LB11970FV-TLM-H
حجم فایل 73.274 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت LB11970FV-TLM-H

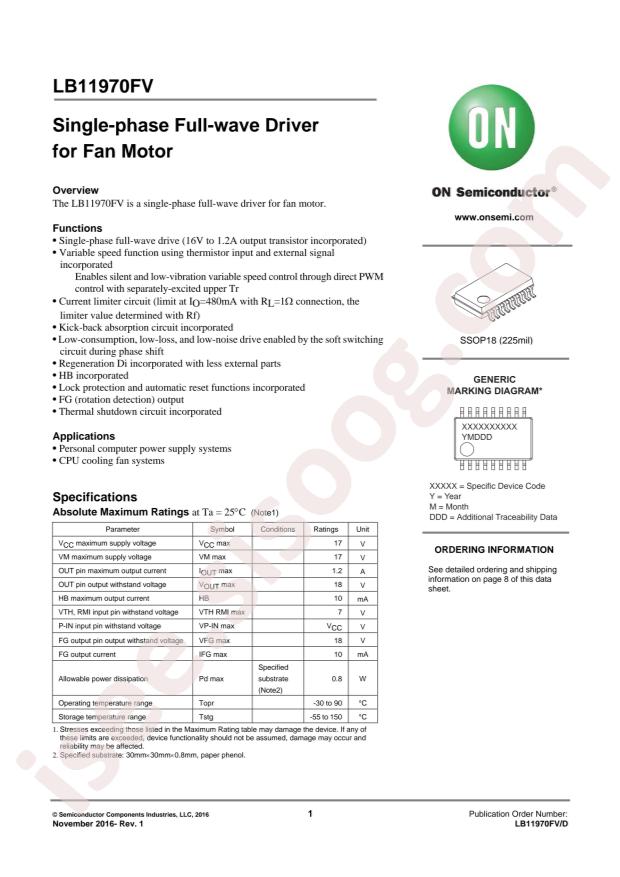

LB11970FV-TLM-H Datasheet

مشخصات

  • RoHS: true
  • Type: 无刷直流BLDC
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: onsemi LB11970FV-TLM-H
  • Interface: Parallel;PWM
  • Output Current: 1.2A
  • Supply Voltage: 4.5V~16V
  • Operating Temperature: -30°C~+90°C@(Ta)
  • Package: SSOP-18-4.4mm
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Discontinued at Digi-Key
  • Motor Type - Stepper: -
  • Motor Type - AC, DC: Brushless DC (BLDC)
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (2)
  • Technology: Bipolar
  • Step Resolution: -
  • Applications: Fan Motor Driver
  • Current - Output: 1.2A
  • Voltage - Supply: 4.5V ~ 16V
  • Voltage - Load: 3.5V ~ 16V
  • Mounting Type: Surface Mount
  • Package / Case: 18-LSOP (0.173", 4.40mm Width)
  • Supplier Device Package: 18-SSOP
  • Base Part Number: LB1197
  • detail: Motor Driver Bipolar Parallel, PWM 18-SSOP
