دیتاشیت NRVBA2H100T3G-VF01
مشخصات دیتاشیت
| نام دیتاشیت | (M,S)BRA, (M,N)BRS, NRVBA_2H100T3G |
|---|---|
| حجم فایل | 239.888 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 8 |
دانلود دیتاشیت (M,S)BRA, (M,N)BRS, NRVBA_2H100T3G |

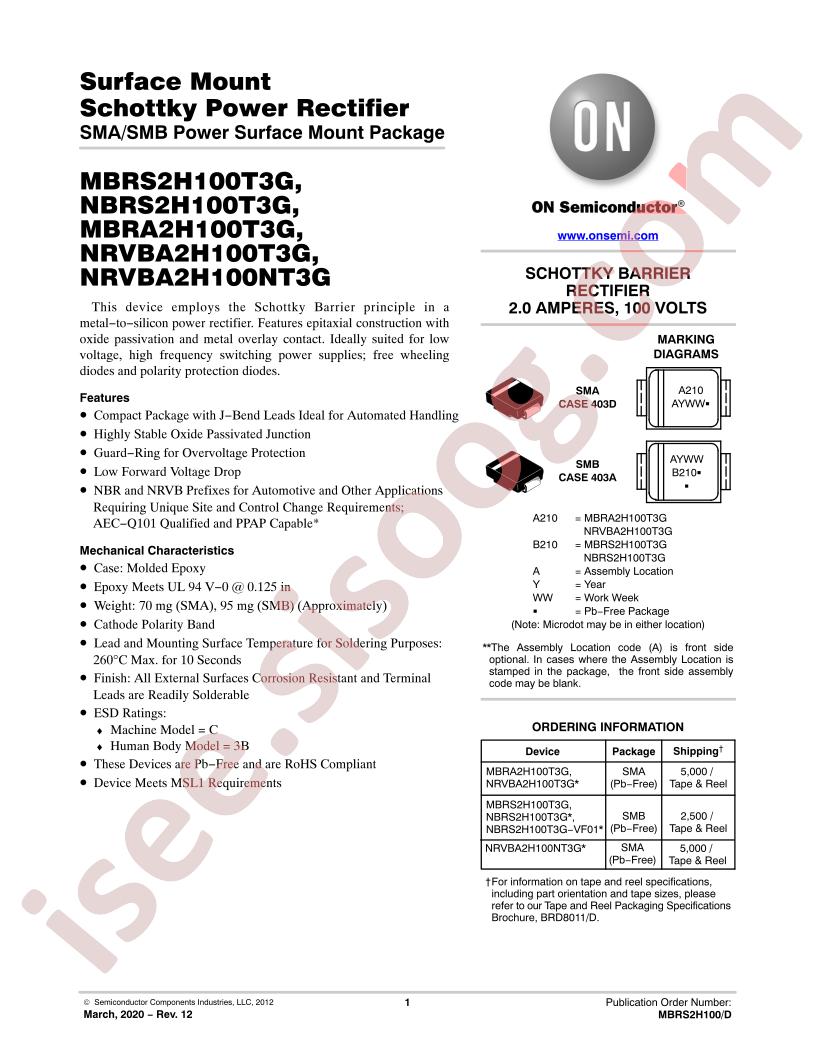

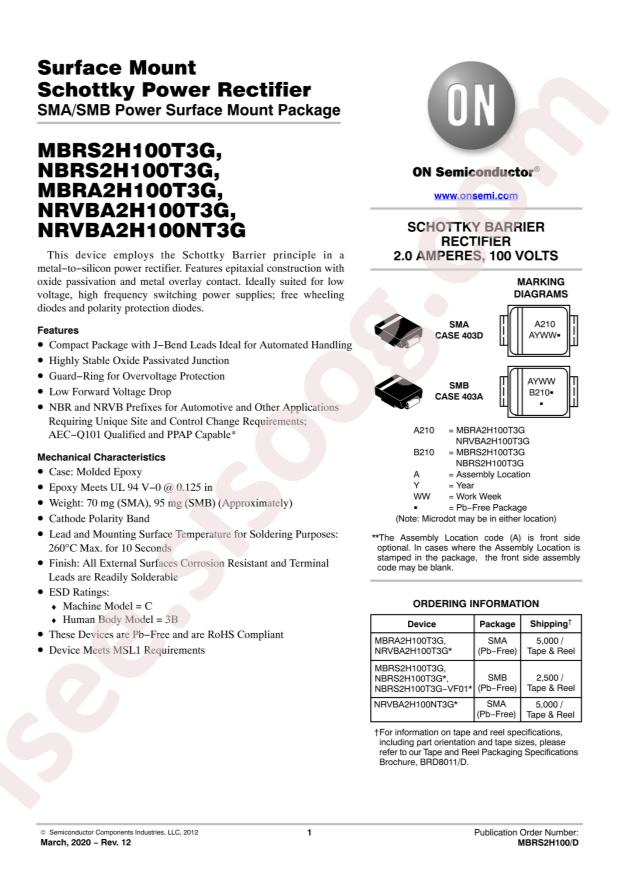

(M,S)BRA, (M,N)BRS, NRVBA_2H100T3G Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Diodes/Schottky Barrier Diodes (SBD)
- Datasheet: onsemi NRVBA2H100T3G-VF01
- Diode Configuration: -
- Reverse Voltage (Vr): 100V
- Forward Voltage (Vf@If): 790mV@2A
- Reverse Leakage Current (Ir): 8uA@100V
- Average Rectified Current (Io): 2A
- Package: SMA
- Manufacturer: onsemi
- Series: Automotive, AEC-Q101
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 100V
- Current - Average Rectified (Io): 2A
- Voltage - Forward (Vf) (Max) @ If: 790mV @ 2A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 8µA @ 100V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: SMA
- Operating Temperature - Junction: -65°C ~ 175°C
- Base Part Number: NRVBA2H
- detail: Diode Schottky 100V 2A Surface Mount SMA
