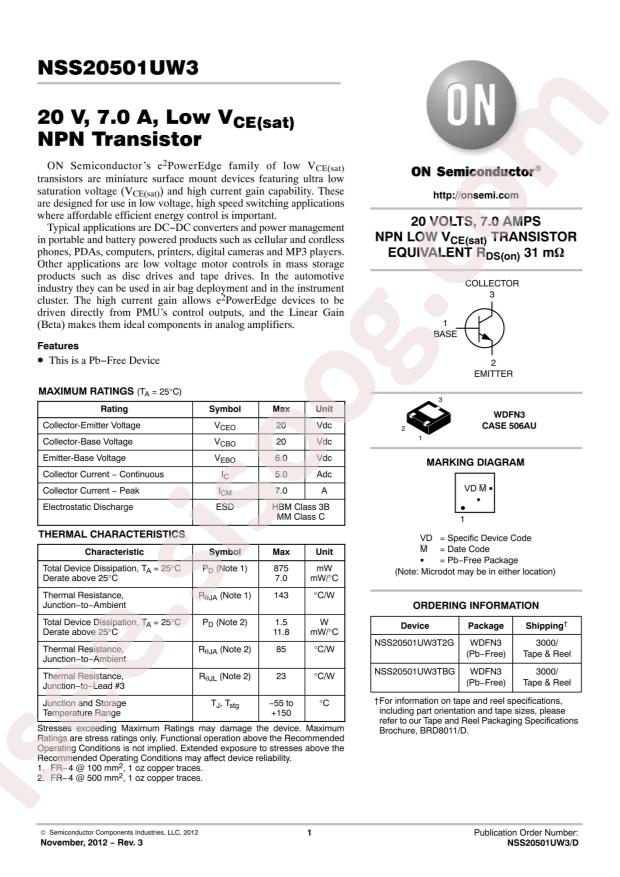

NSS20501UW3TBG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NSS20501UW3TBG
|
|
حجم فایل
|
102.053
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi NSS20501UW3TBG
-
Transistor Type:
NPN
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
5A
-
Power Dissipation (Pd):
875mW
-
Transition Frequency (fT):
150MHz
-
DC Current Gain (hFE@Ic,Vce):
200@2A,2V
-
Collector Cut-Off Current (Icbo):
100nA
-
Collector-Emitter Breakdown Voltage (Vceo):
20V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
110mV@4A,400mA
-
Package:
DFN-3(2x2)
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
5A
-
Voltage - Collector Emitter Breakdown (Max):
20V
-
Vce Saturation (Max) @ Ib, Ic:
125mV @ 400mA, 4A
-
Current - Collector Cutoff (Max):
100nA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
200 @ 2A, 2V
-
Power - Max:
875mW
-
Frequency - Transition:
150MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
3-WDFN Exposed Pad
-
Supplier Device Package:
3-WDFN (2x2)
-
Base Part Number:
NSS205
-
detail:
Bipolar (BJT) Transistor NPN 20V 5A 150MHz 875mW Surface Mount 3-WDFN (2x2)
