دیتاشیت NCP1247AD065R2G

مشخصات دیتاشیت

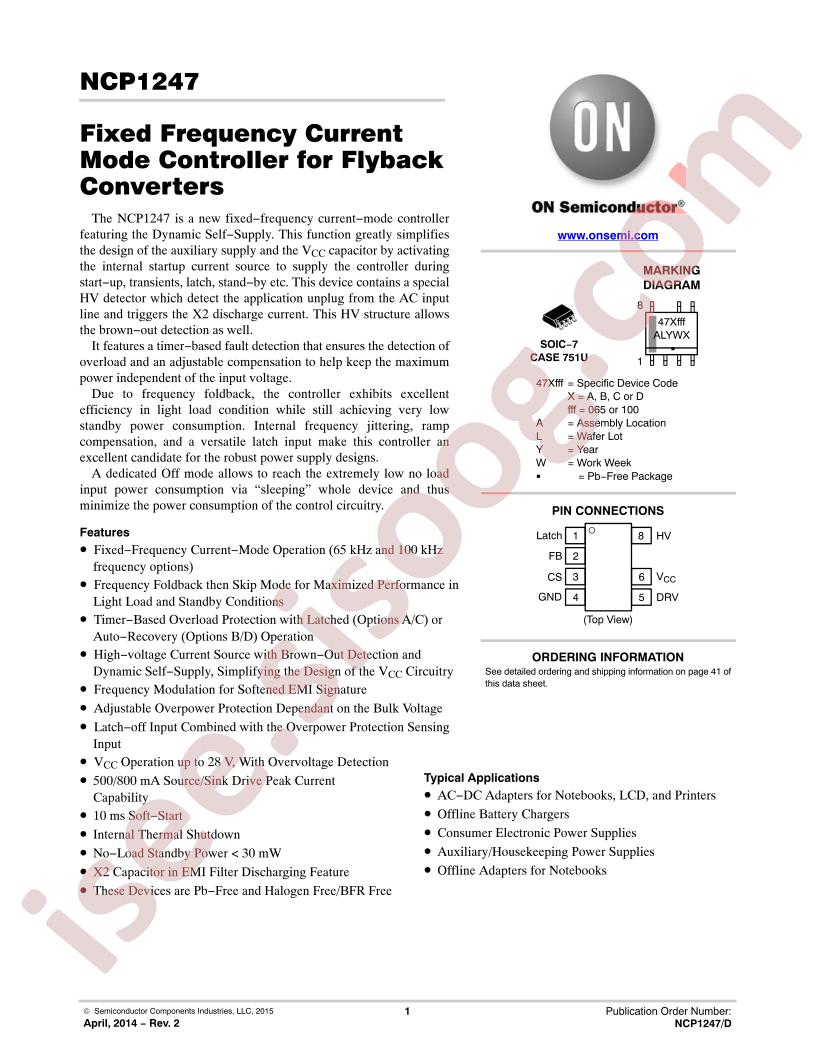

دانلود دیتاشیت NCP1247 Datasheet	NCP1247 Datasheet Datasheet

Manufacturer: ON Semiconductor
Series: -
Packaging: Tape & Reel (TR)
Part Status: Active
Output Isolation: Isolated
Internal Switch(s): No
Voltage - Breakdown: -
Topology: Flyback
Voltage - Start Up: 12V
Voltage - Supply (Vcc/Vdd): 8.9V ~ 28V
Duty Cycle: 80%
Frequency - Switching: 65kHz
Fault Protection: Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage
Control Features: -
Operating Temperature: -40°C ~ 150°C (TJ)
Package / Case: 8-SOIC (0.154", 3.90mm Width), 7 Leads
Supplier Device Package: 7-SOIC
Mounting Type: Surface Mount
Base Part Number: NCP1247
detail: Converter Offline Flyback Topology 65kHz 7-SOIC
