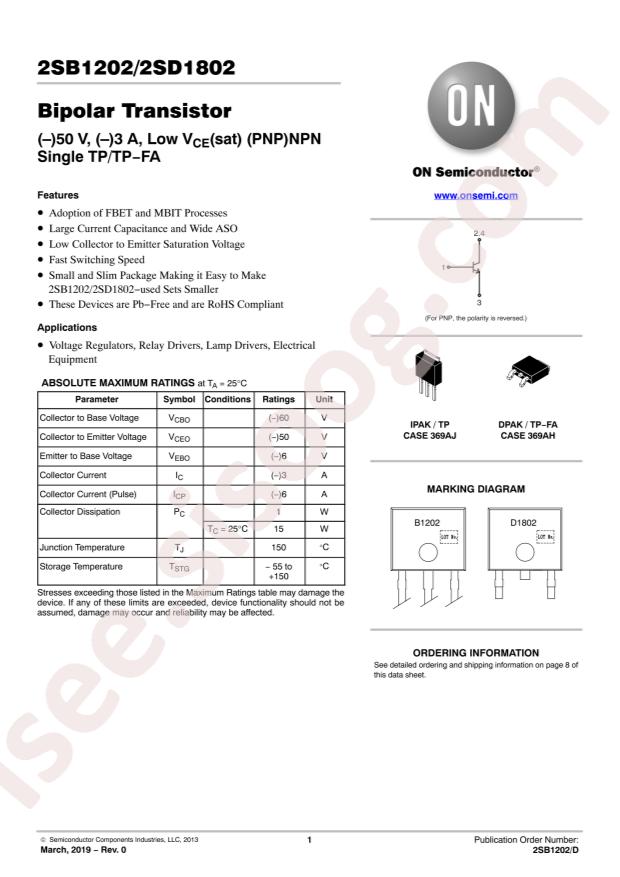

2SD1802T-E دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
2SD1802T-E
|
|
حجم فایل
|
65.9
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
onsemi 2SD1802T-E
-
Transistor Type:
NPN
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
5A
-
Power Dissipation (Pd):
1W
-
Transition Frequency (fT):
150MHz
-
DC Current Gain (hFE@Ic,Vce):
200@100mA,2V
-
Collector Cut-Off Current (Icbo):
1uA
-
Collector-Emitter Breakdown Voltage (Vceo):
50V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
190mV@2A,100mA
-
Package:
-
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Bulk
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
5A
-
Voltage - Collector Emitter Breakdown (Max):
50V
-
Vce Saturation (Max) @ Ib, Ic:
0.5mV @ 100mA, 2A
-
Current - Collector Cutoff (Max):
1µA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
200 @ 100mA, 2V
-
Power - Max:
1W
-
Frequency - Transition:
150MHz
-
Mounting Type:
Through Hole
-
Package / Case:
TO-251-3 Short Leads, IPak, TO-251AA
-
Supplier Device Package:
TP
-
Base Part Number:
2SD1802
-
detail:
Bipolar (BJT) Transistor NPN 50V 5A 150MHz 1W Through Hole TP
