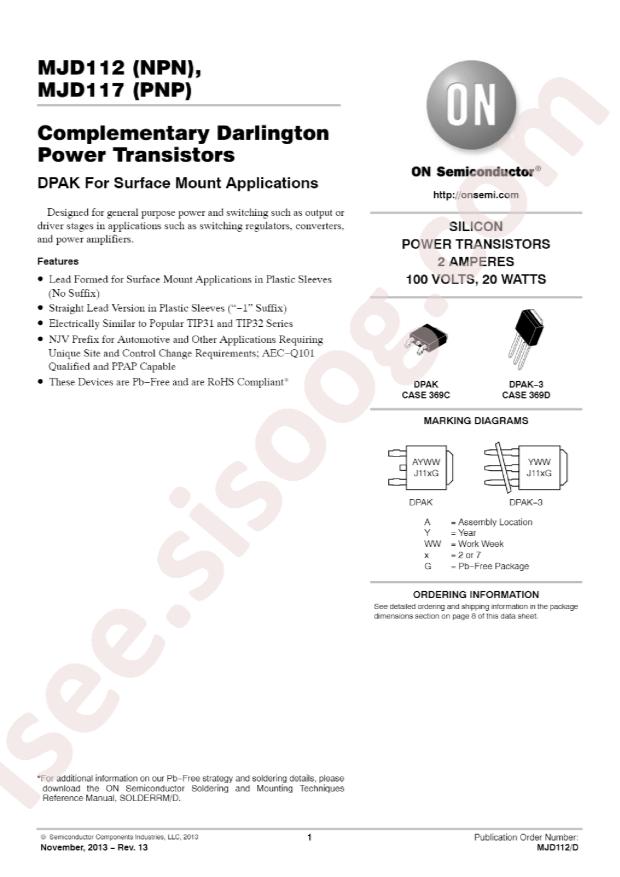

NJVMJD117T4G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NJVMJD117T4G
|
|
حجم فایل
|
56.966
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Darlington Transistors
-
Datasheet:
onsemi NJVMJD117T4G
-
Transistor Type:
PNP
-
Operating Temperature:
-65°C~+150°C@(Tj)
-
Collector Current (Ic):
2A
-
Power Dissipation (Pd):
1.75W
-
Transition frequency (fT):
25MHz
-
DC current gain (hFE@Vce,Ic):
1000@3V,2A
-
Collector-emitter voltage (Vceo):
100V
-
Collector cut-off current (Icbo@Vcb):
20uA
-
Collector-emitter saturation voltage (VCE(sat)@Ic,Ib):
3V@4A,40mA
-
Package:
TO-252
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
Current - Collector (Ic) (Max):
2A
-
Voltage - Collector Emitter Breakdown (Max):
100V
-
Vce Saturation (Max) @ Ib, Ic:
2V @ 8mA, 2A
-
Current - Collector Cutoff (Max):
20µA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
1000 @ 2A, 3V
-
Power - Max:
20W
-
Frequency - Transition:
25MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Supplier Device Package:
DPAK
-
Base Part Number:
MJD11
-
detail:
Bipolar (BJT) Transistor PNP - Darlington 100V 2A 25MHz 20W Surface Mount DPAK
