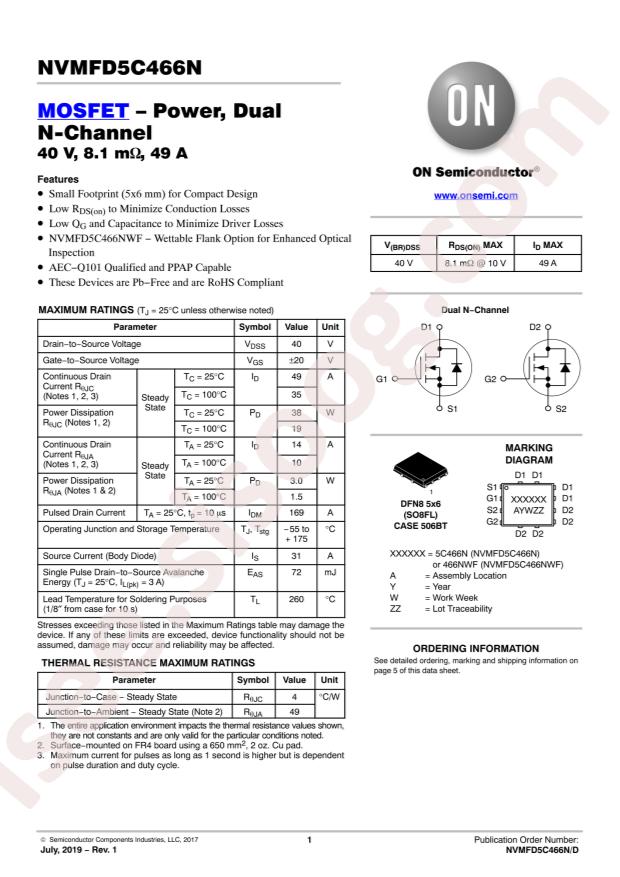

NVMFD5C466NT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NVMFD5C466NT1G
|
|
حجم فایل
|
92.922
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Type:
2 N-Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NVMFD5C466NT1G
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
3W;38W
-
Total Gate Charge (Qg@Vgs):
11nC@10V
-
Drain Source Voltage (Vdss):
40V
-
Input Capacitance (Ciss@Vds):
650pF@25V
-
Continuous Drain Current (Id):
14A;49A
-
Gate Threshold Voltage (Vgs(th)@Id):
3.5V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
8.1mΩ@15A,10V
-
Package:
DFN-8
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
FET Type:
2 N-Channel (Dual)
-
FET Feature:
Standard
-
Drain to Source Voltage (Vdss):
40V
-
Current - Continuous Drain (Id) @ 25°C:
14A (Ta), 49A (Tc)
-
Rds On (Max) @ Id, Vgs:
8.1mOhm @ 15A, 10V
-
Vgs(th) (Max) @ Id:
3.5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
11nC @ 10V
-
Input Capacitance (Ciss) (Max) @ Vds:
650pF @ 25V
-
Power - Max:
3W (Ta), 38W (Tc)
-
Mounting Type:
Surface Mount
-
Package / Case:
8-PowerTDFN
-
Supplier Device Package:
8-DFN (5x6) Dual Flag (SO8FL-Dual)
-
Base Part Number:
NVMFD5
-
detail:
Mosfet Array 2 N-Channel (Dual) 40V 14A (Ta), 49A (Tc) 3W (Ta), 38W (Tc) Surface Mount 8-DFN (5x6) Dual Flag (SO8FL-Dual)
