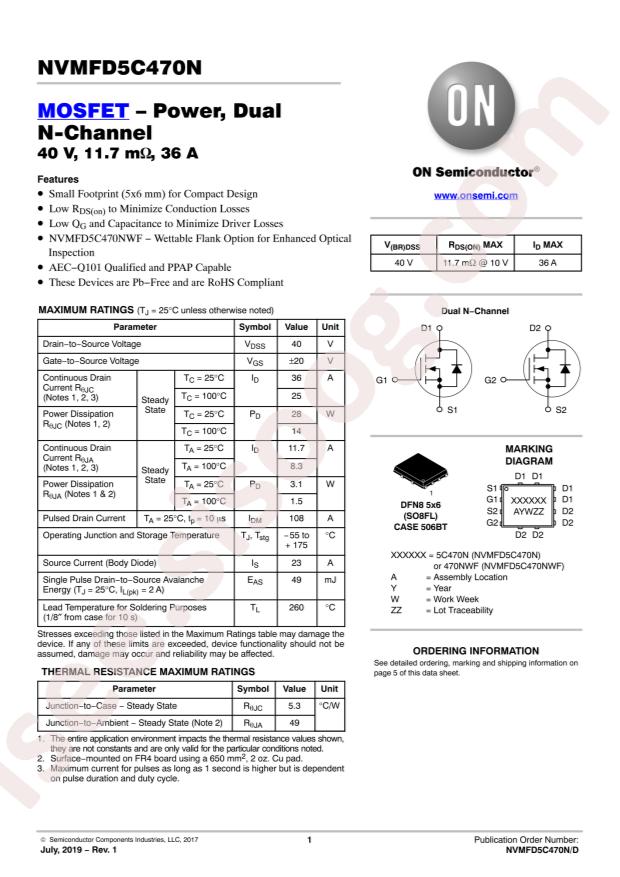

NVMFD5C470NT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NVMFD5C470NT1G
|
|
حجم فایل
|
94.165
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Type:
2 N-Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NVMFD5C470NT1G
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
28W
-
Total Gate Charge (Qg@Vgs):
8nC@10V
-
Drain Source Voltage (Vdss):
40V
-
Input Capacitance (Ciss@Vds):
420pF@25V
-
Continuous Drain Current (Id):
36A
-
Gate Threshold Voltage (Vgs(th)@Id):
3.5V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
11pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
9.75mΩ@10V,10A
-
Package:
DFN-8(5x6)
-
Manufacturer:
onsemi
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
FET Type:
2 N-Channel (Dual)
-
FET Feature:
Standard
-
Drain to Source Voltage (Vdss):
40V
-
Current - Continuous Drain (Id) @ 25°C:
11.7A (Ta), 36A (Tc)
-
Rds On (Max) @ Id, Vgs:
11.7mOhm @ 10A, 10V
-
Vgs(th) (Max) @ Id:
3.5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
8nC @ 10V
-
Input Capacitance (Ciss) (Max) @ Vds:
420pF @ 25V
-
Power - Max:
3.1W (Ta), 28W (Tc)
-
Mounting Type:
Surface Mount
-
Package / Case:
8-PowerTDFN
-
Supplier Device Package:
8-DFN (5x6) Dual Flag (SO8FL-Dual)
-
Base Part Number:
NVMFD5
-
detail:
Mosfet Array 2 N-Channel (Dual) 40V 11.7A (Ta), 36A (Tc) 3.1W (Ta), 28W (Tc) Surface Mount 8-DFN (5x6) Dual Flag (SO8FL-Dual)
