دیتاشیت LB1863M-TLM-E

LB1863M-TLM-E

مشخصات دیتاشیت

نام دیتاشیت LB1863M-TLM-E
حجم فایل 68.955 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت LB1863M-TLM-E

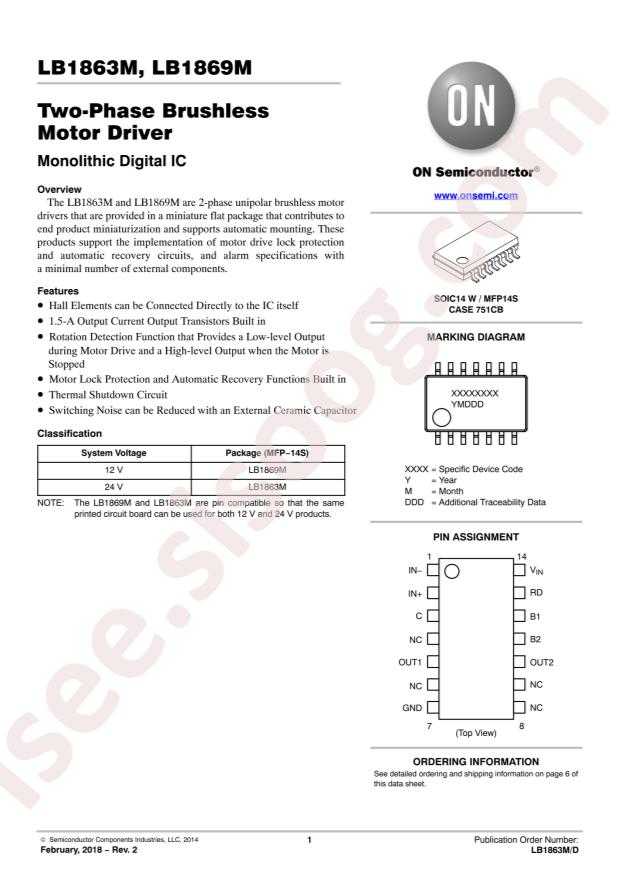

LB1863M-TLM-E Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: onsemi LB1863M-TLM-E
  • Package: MFP-14S
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Output Configuration: Half Bridge (2)
  • Applications: DC Motors, General Purpose
  • Interface: Logic
  • Load Type: Inductive
  • Technology: Bipolar
  • Rds On (Typ): -
  • Current - Output / Channel: 1.5A
  • Current - Peak Output: -
  • Voltage - Supply: 6.4V ~ 7V
  • Voltage - Load: 24V
  • Operating Temperature: -30°C ~ 80°C (TA)
  • Features: -
  • Fault Protection: Over Temperature
  • Mounting Type: Surface Mount
  • Package / Case: 14-LSOP (0.173", 4.40mm Width)
  • Supplier Device Package: 14-SOIC / 14MFPS
  • Base Part Number: LB1863
  • detail: Half Bridge (2) Driver DC Motors, General Purpose Bipolar 14-SOIC / 14MFPS
