NCP1341A1D1R2G دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت NCP1341 Datasheet-Isee	دانلود دیتاشیت

مستندات دیگری یافت نشد!

Manufacturer: ON Semiconductor
Series: -
Packaging: Tape & Reel (TR)
Part Status: Active
Output Isolation: Isolated
Internal Switch(s): No
Voltage - Breakdown: -
Topology: Flyback
Voltage - Start Up: 17V
Voltage - Supply (Vcc/Vdd): 9V ~ 28V
Duty Cycle: 75%
Frequency - Switching: 1.3kHz
Fault Protection: Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage
Control Features: -
Operating Temperature: -40°C ~ 125°C (TJ)

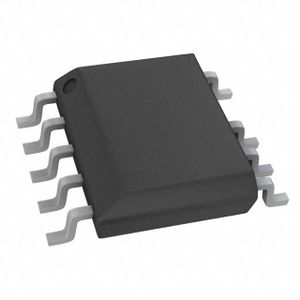

Package / Case: 10-SOP (0.154", 3.90mm Width), 9 Leads
Supplier Device Package: 9-SOIC
Mounting Type: Surface Mount
Base Part Number: NCP1341
detail: Converter Offline Flyback Topology 1.3kHz 9-SOIC
