FAN105AM6X دیتاشیت

مشخصات دیتاشیت

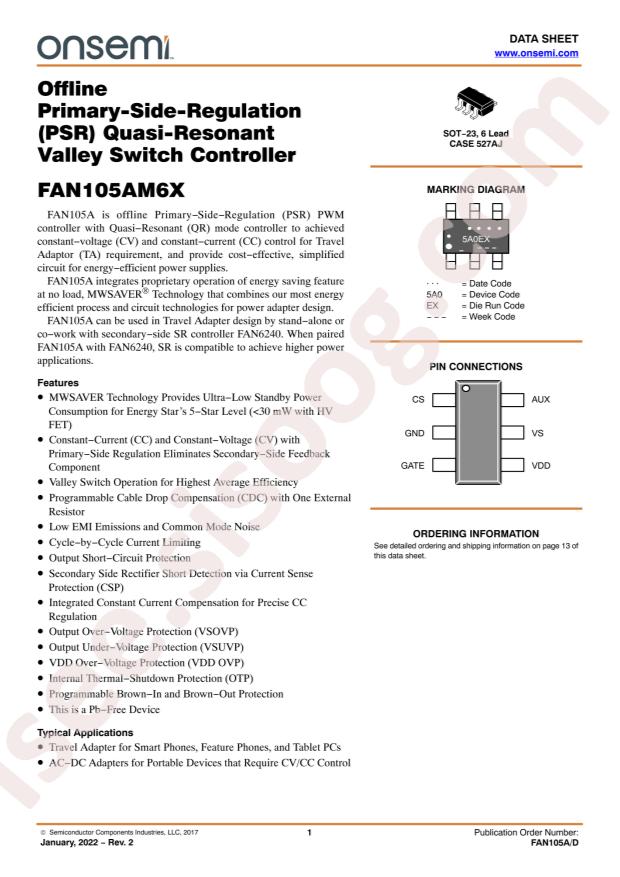

مشاهده دیتاشیت FAN105AM6X	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/AC-DC Controllers & Regulators
Topology: Flyback
Datasheet: onsemi FAN105AM6X
Supply Voltage: 7V~25V
Output Isolation: Isolation
Switching Frequency: 5kHz~76kHz
Operating Temperature: -40°C~+125°C
Package: SOT-23-6
Manufacturer: onsemi
Series: -
Packaging: Tape & Reel (TR)
Part Status: Active
Internal Switch(s): No
Voltage - Breakdown: -
Voltage - Start Up: 17.5V
Voltage - Supply (Vcc/Vdd): 7V ~ 25V
Duty Cycle: -
Frequency - Switching: 5kHz ~ 76kHz
Fault Protection: Current Limiting, Over Temperature, Over Voltage, Short Circuit
Control Features: -
Package / Case: SOT-23-6
Supplier Device Package: SOT-23-6
Mounting Type: Surface Mount
Base Part Number: FAN105
detail: Converter Offline Flyback Topology 5kHz ~ 76kHz SOT-23-6
