NVD5C486NT4G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NVD5C486NT4G
|
|
حجم فایل
|
87.996
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:

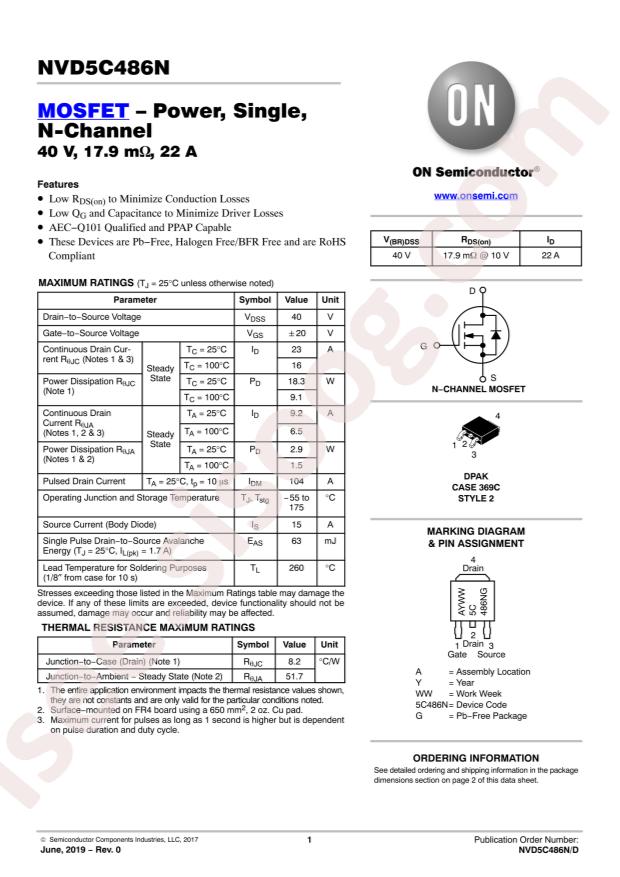

onsemi NVD5C486NT4G
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
2.9W;18.3W
-
Total Gate Charge (Qg@Vgs):
14nC@10V
-
Drain Source Voltage (Vdss):
40V
-
Input Capacitance (Ciss@Vds):
380pF@25V
-
Continuous Drain Current (Id):
9.2A;23A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@20uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
17.9mΩ@10A,10V
-
Package:
DPAK-3
-
Manufacturer:
onsemi
-
Series:
Automotive, AEC-Q101
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
40V
-
Current - Continuous Drain (Id) @ 25°C:
9.2A (Ta), 23A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
17.9mOhm @ 10A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 20µA
-
Gate Charge (Qg) (Max) @ Vgs:
14nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
380pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
2.9W (Ta), 18.3W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
DPAK
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Base Part Number:
NVD5C4
-
detail:
N-Channel 40V 9.2A (Ta), 23A (Tc) 2.9W (Ta), 18.3W (Tc) Surface Mount DPAK
