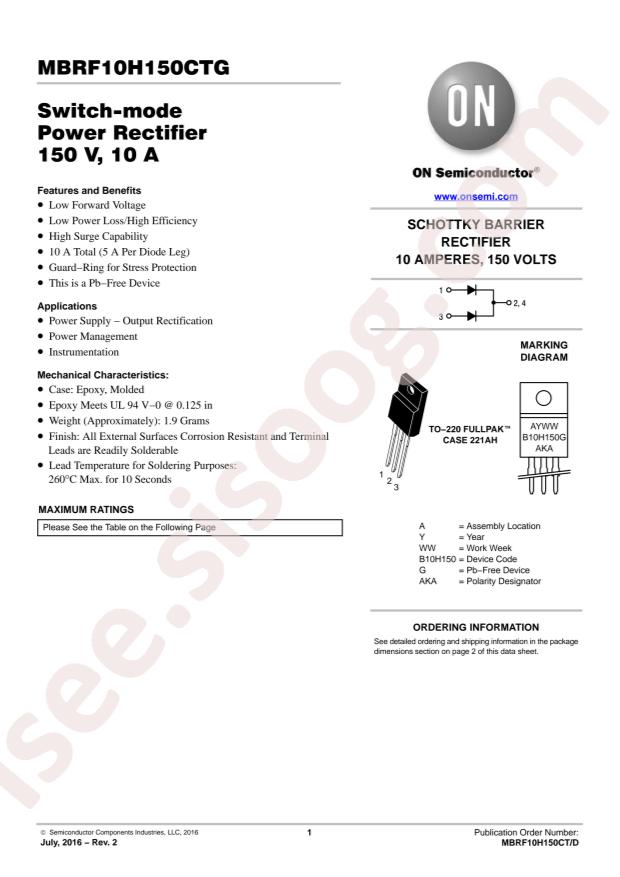

MBRF10H150CTG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MBRF10H150CTG
|
|
حجم فایل
|
57.377
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Switching Diode
-
Datasheet:
onsemi MBRF10H150CTG
-
Power Dissipation:
-
-
Diode Configuration:
Dual Common Cathode
-
Reverse Voltage (Vr):
150V
-
Operating Temperature:
-20°C~+150°C@(Tj)
-
Forward Voltage (Vf@If):
850mV@5A
-
Reverse Leakage Current:
45uA@150V
-
Reverse Recovery Time (trr):
-
-
Average Rectified Current (Io):
5A
-
Package:
TO-220
-
Manufacturer:
onsemi
-
Series:
SWITCHMODE™
-
Packaging:
Tube
-
Part Status:
Active
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
150V
-
Current - Average Rectified (Io) (per Diode):
5A
-
Voltage - Forward (Vf) (Max) @ If:
850mV @ 5A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
45µA @ 150V
-
Operating Temperature - Junction:
-20°C ~ 150°C
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3 Full Pack
-
Supplier Device Package:
TO-220FP
-
Base Part Number:
MBRF10
-
detail:
Diode Array 1 Pair Common Cathode Schottky 150V 5A Through Hole TO-220-3 Full Pack
